Scenario 09 — AWS IAM Least Privilege

Business Problem

IDSentinel Solutions' cloud expansion into AWS required establishing a baseline identity architecture before any workloads were deployed. The Security team mandated that no human or service identity operate with standing administrative access — all access must follow least-privilege principles, and any privilege elevation must occur through time-bound role assumption with a full audit trail captured via CloudTrail.

An internal review confirmed that without enforced role assumption boundaries, a compromised service credential would grant unrestricted access to IAM and other AWS services — a direct violation of IDSentinel's Zero Trust initiative.

Risk

Service identities with standing admin access create permanent blast radius
No audit trail for privilege elevation without CloudTrail enforcement
Compromised long-lived credentials grant unrestricted AWS access
Non-compliant with IDSentinel's Zero Trust and least-privilege mandate
Potential compliance exposure under SOC 2 Type II CC6.3 controls

Scope

Field	Detail
Affected identities	Service accounts and programmatic users in AWS
Target	Zero standing admin access — all elevation via role assumption
Controls implemented	Least-privilege IAM policy, scoped trust policy with ExternalId condition, CloudTrail audit trail
Validation	CLI-based role assumption test with deny enforcement confirmation

Solution Design — 4 Workstreams

WS 1

IAM Identities

Service user created with programmatic-only access and no inline permissions. All permissions assigned via group membership for consistent policy application.

WS 2

Least-Privilege Policy

Custom IAM policy with explicit ReadOnly grants and explicit Deny on all IAM write actions — ensuring even a misconfiguration cannot grant write access to the identity plane.

WS 3

Role Assumption with Trust Boundary

IAM role with scoped trust policy restricting assumption to a single principal with an ExternalId condition — preventing confused deputy attacks.

WS 4

CloudTrail Audit

Trail enabled across all regions capturing AssumeRole events — tamper-evident audit log for compliance and incident response.

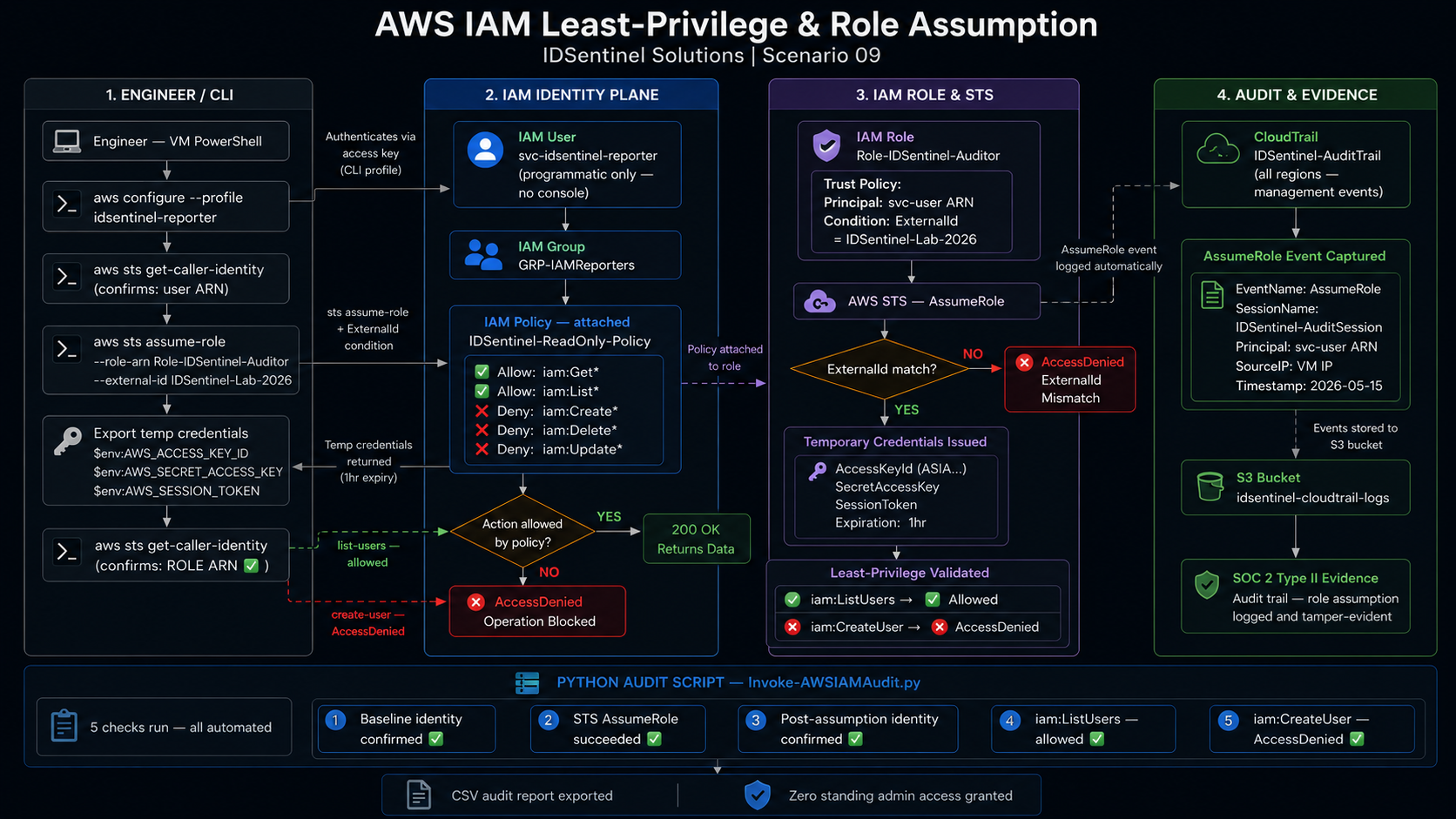

// diagrams/aws-iam-flow.png — Architecture and role assumption flow diagram expand

Implementation

01

Create IAM Identities

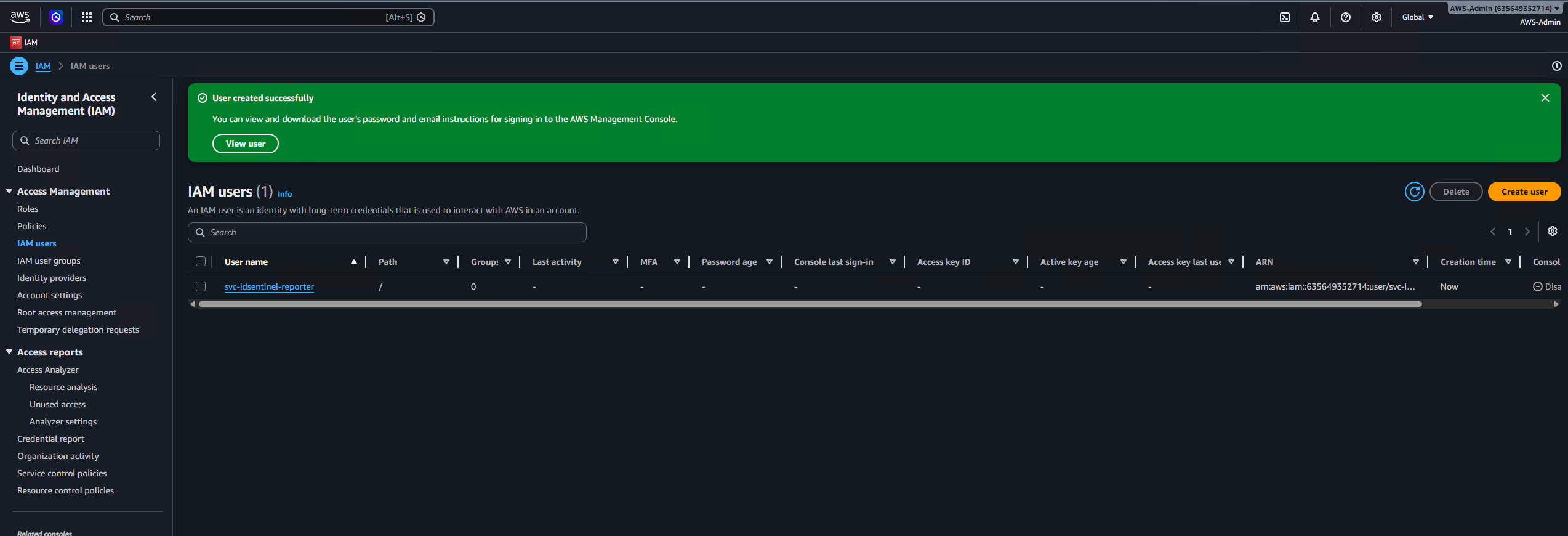

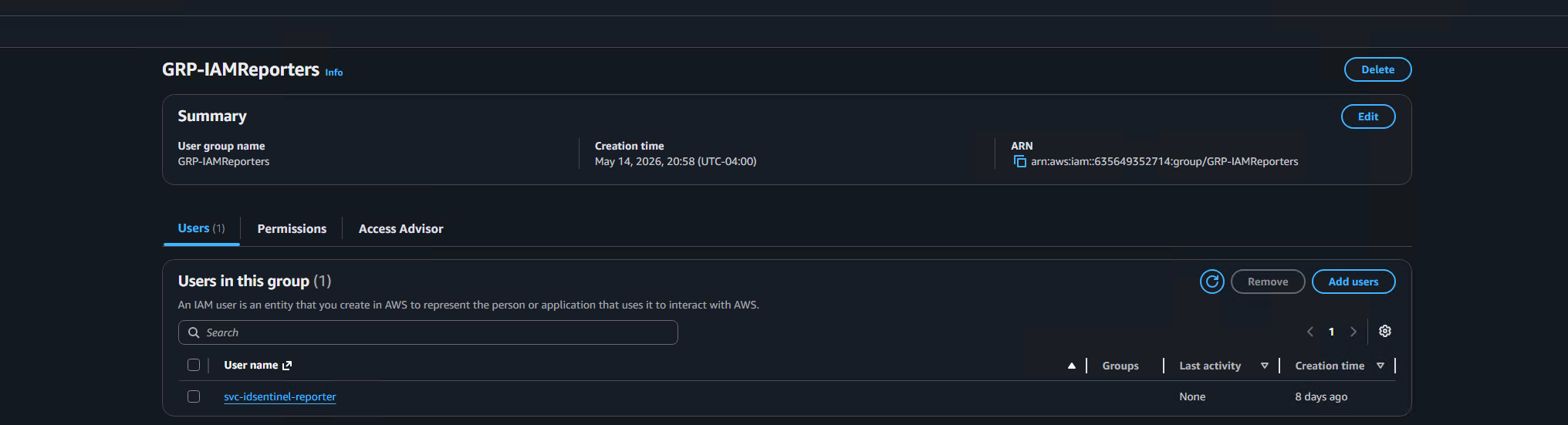

Service user svc-idsentinel-reporter created with programmatic-only access (no console login). Added to group GRP-IAMReporters — policy assigned at group level, not inline, for consistent governance.

// 01-iam-user-created expand

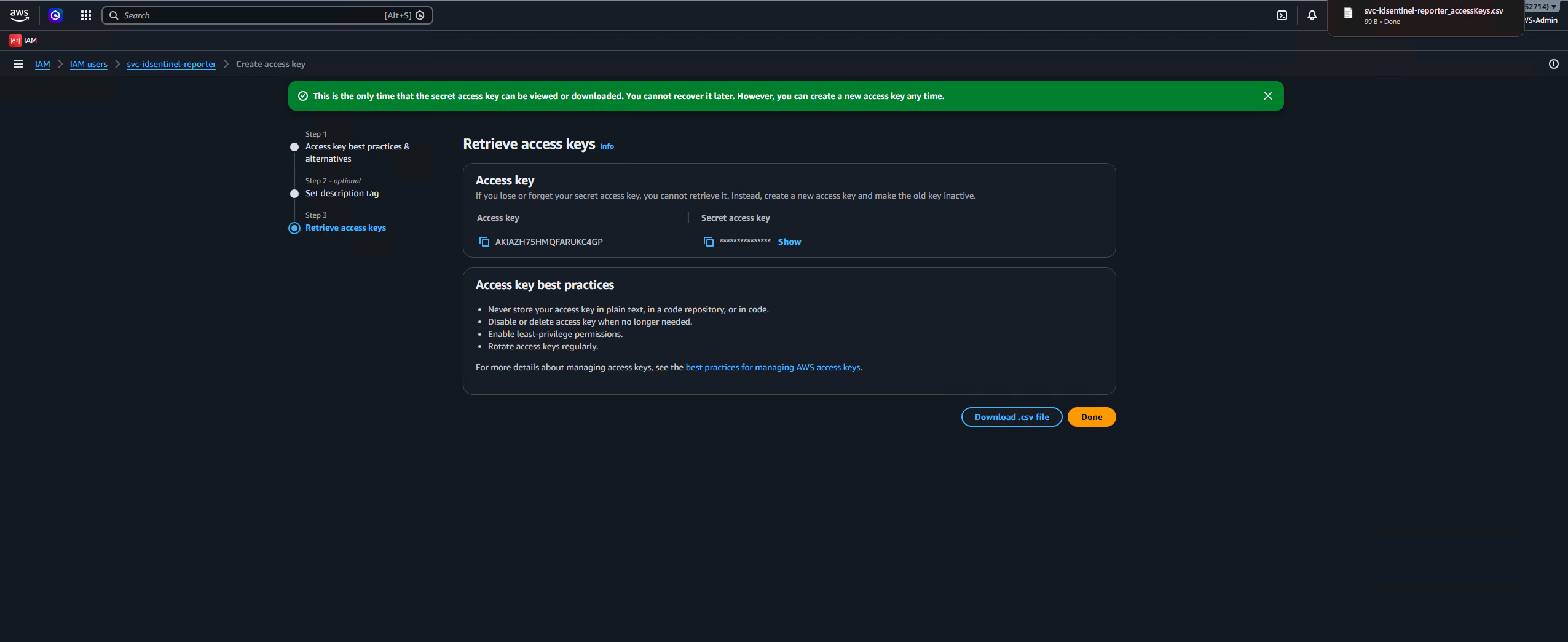

// 02a-user-access-key-created expand

// 02b-group-membership expand
02

Deploy Least-Privilege Policy

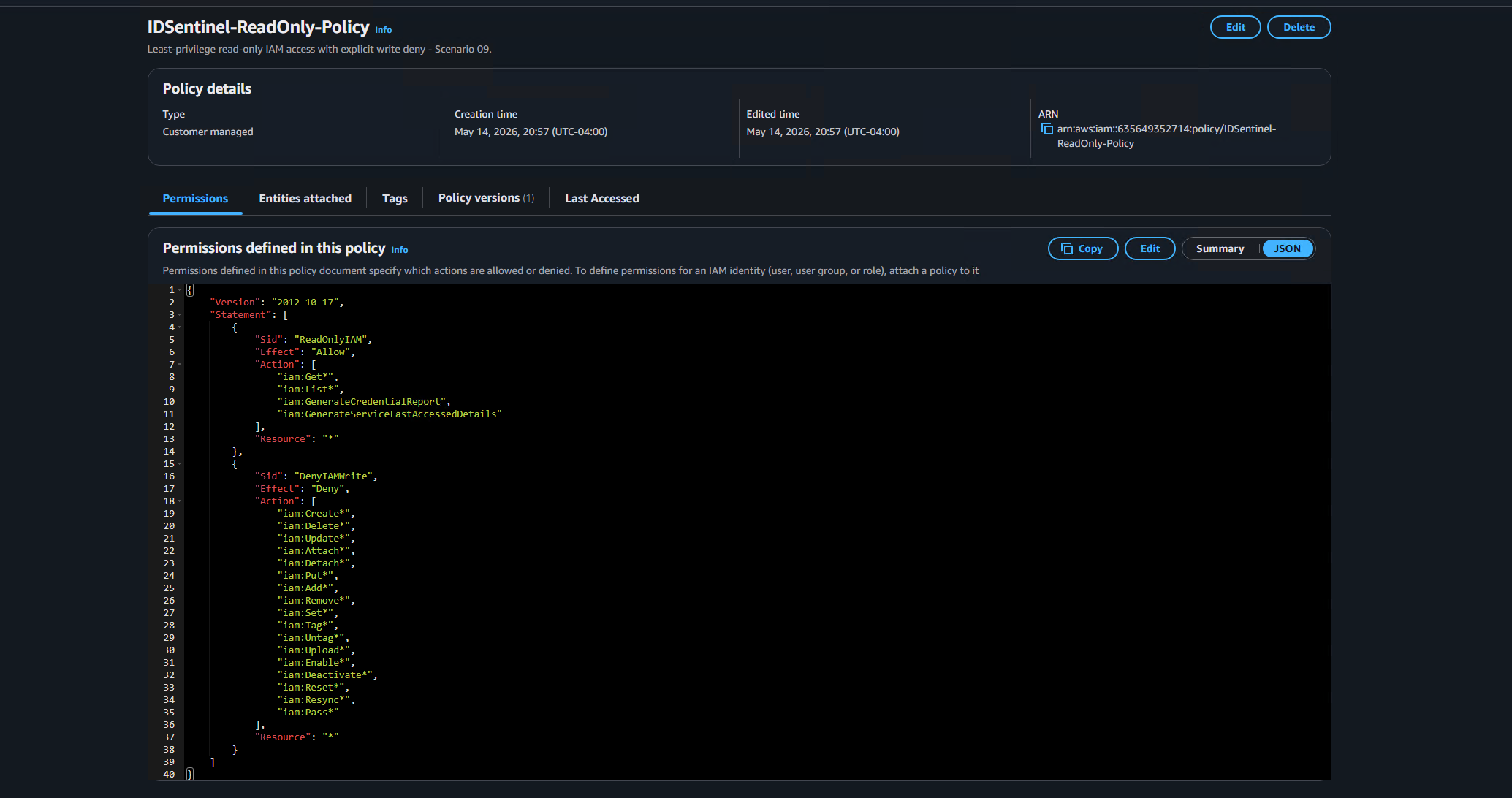

Custom policy IDSentinel-ReadOnly-Policy created with explicit Allow on IAM read actions and explicit Deny on all IAM write actions. Attached to GRP-IAMReporters — inherited by all group members. Explicit Deny overrides any conflicting Allow — defense in depth.

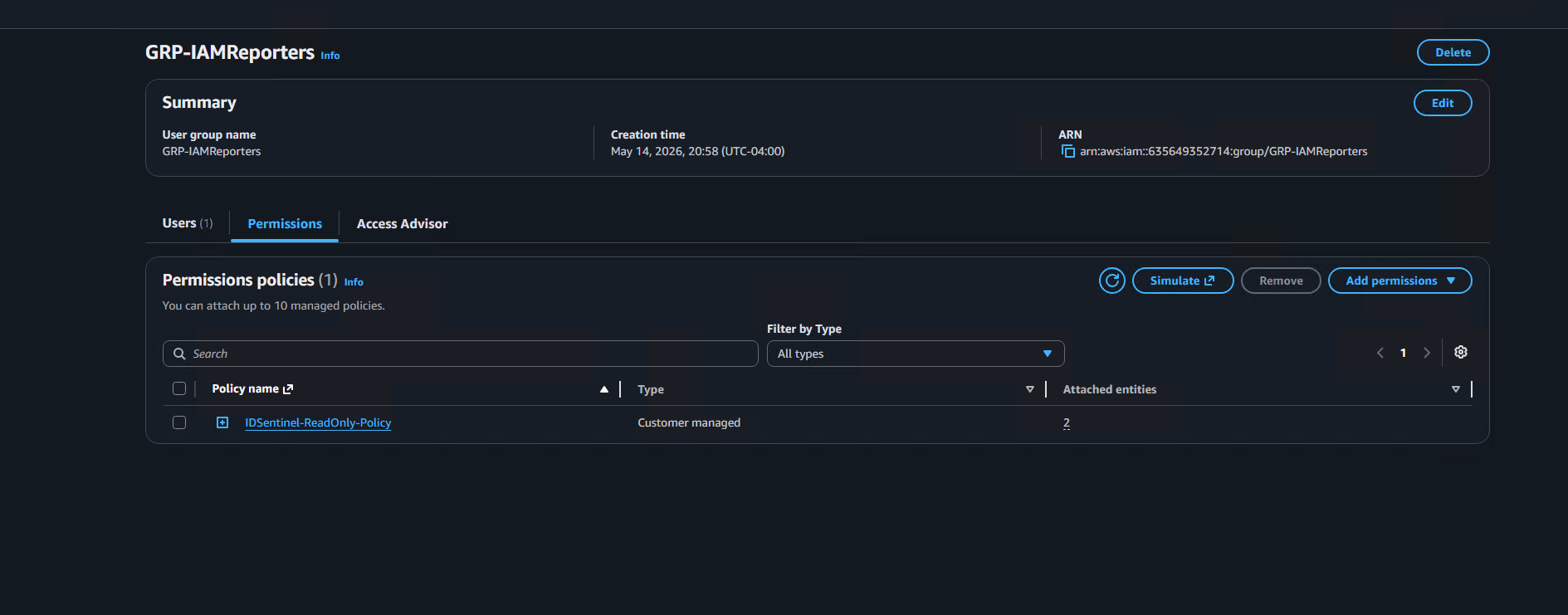

// 03-policy-attached expand

// 04-policy-summary expand
03

Create IAM Role with Scoped Trust Policy

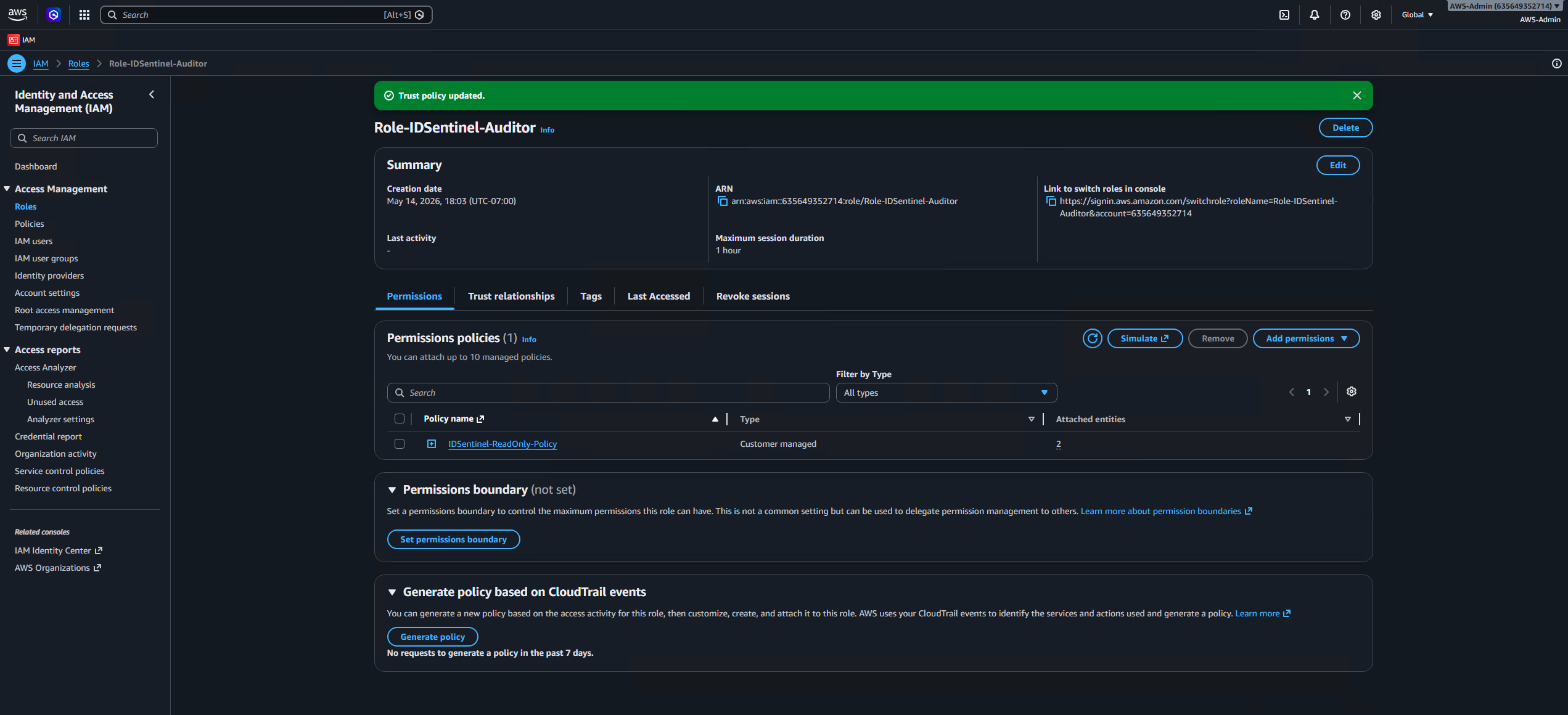

Role Role-IDSentinel-Auditor created with trust policy restricting assumption to svc-idsentinel-reporter only, enforced by ExternalId condition IDSentinel-Lab-2026 to prevent confused deputy attacks.

// 05-role-summary expand

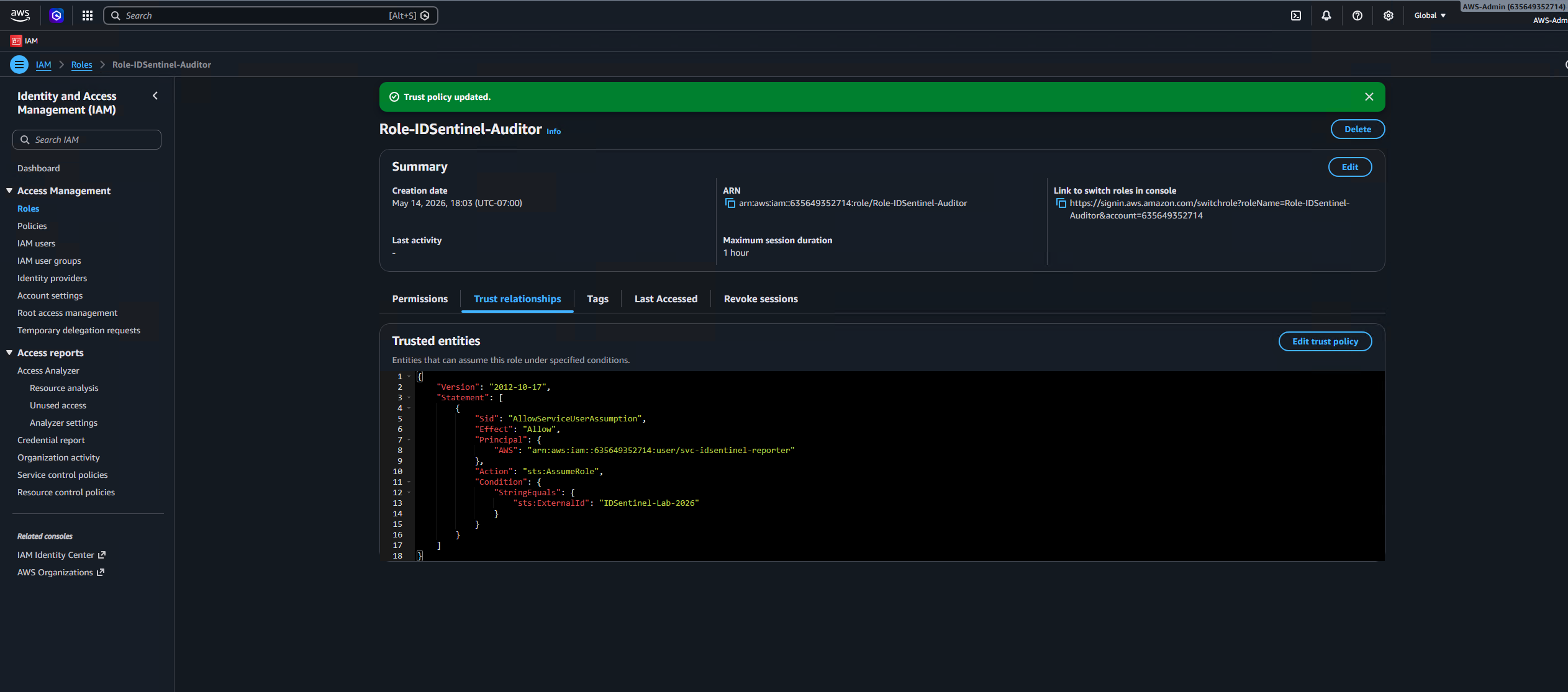

// 06-trust-policy expand
04

Enable CloudTrail

Trail IDSentinel-AuditTrail created across all regions with management events (Read + Write) logged to S3 bucket idsentinel-cloudtrail-logs.

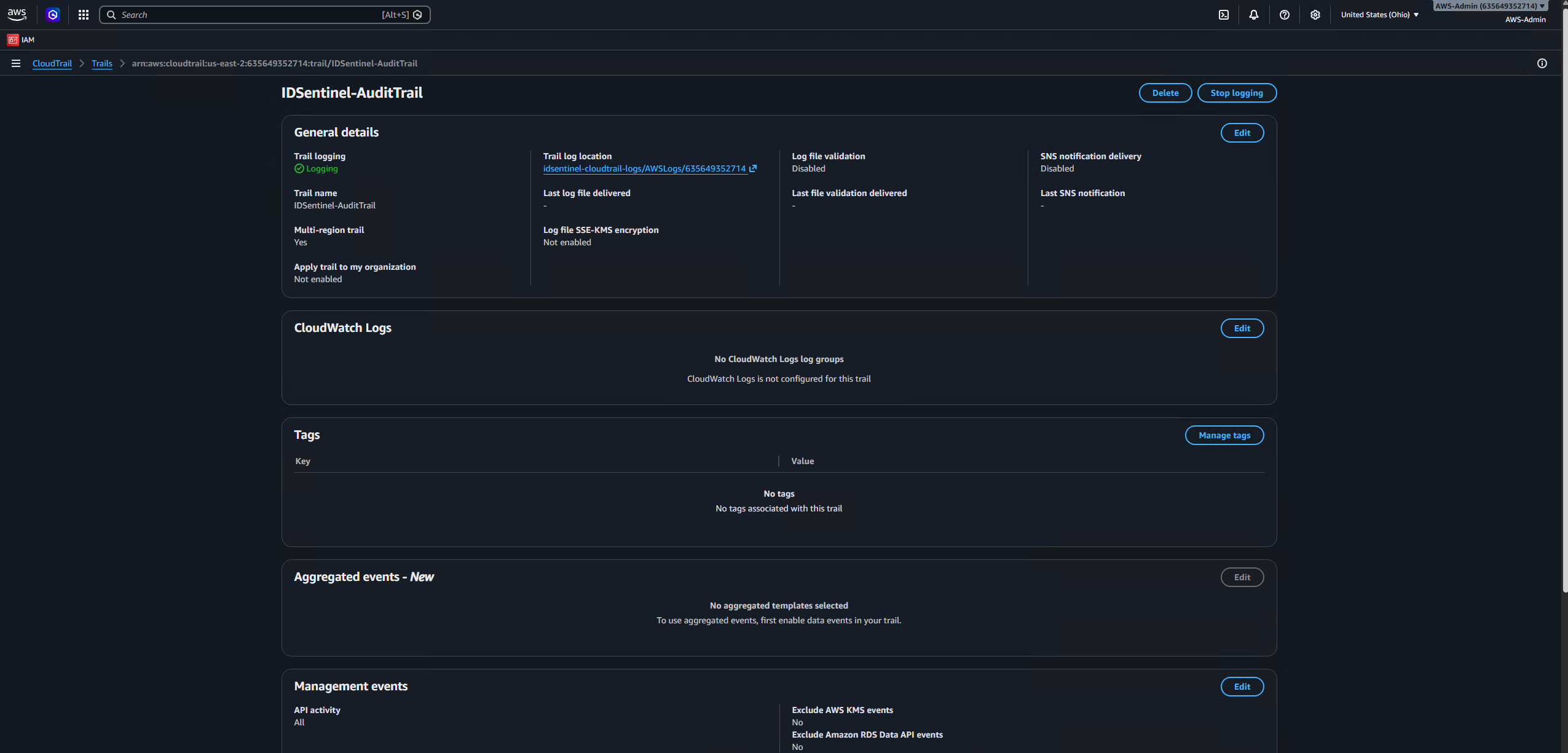

// 07-cloudtrail-active expand

05

Assume Role via AWS CLI

bash — STS Role Assumption

# Verify baseline identity (user, not role)
aws sts get-caller-identity --profile idsentinel-reporter

# Assume the role with ExternalId condition
aws sts assume-role \
  --role-arn "arn:aws:iam::ACCOUNT_ID:role/Role-IDSentinel-Auditor" \
  --role-session-name "IDSentinel-AuditSession-01" \
  --external-id "IDSentinel-Lab-2026" \
  --profile idsentinel-reporter

# Export temporary credentials
export AWS_ACCESS_KEY_ID=<AccessKeyId>
export AWS_SECRET_ACCESS_KEY=<SecretAccessKey>
export AWS_SESSION_TOKEN=<SessionToken>

# Confirm identity is now the ROLE, not the user
aws sts get-caller-identity

// 08-caller-identity-user expand

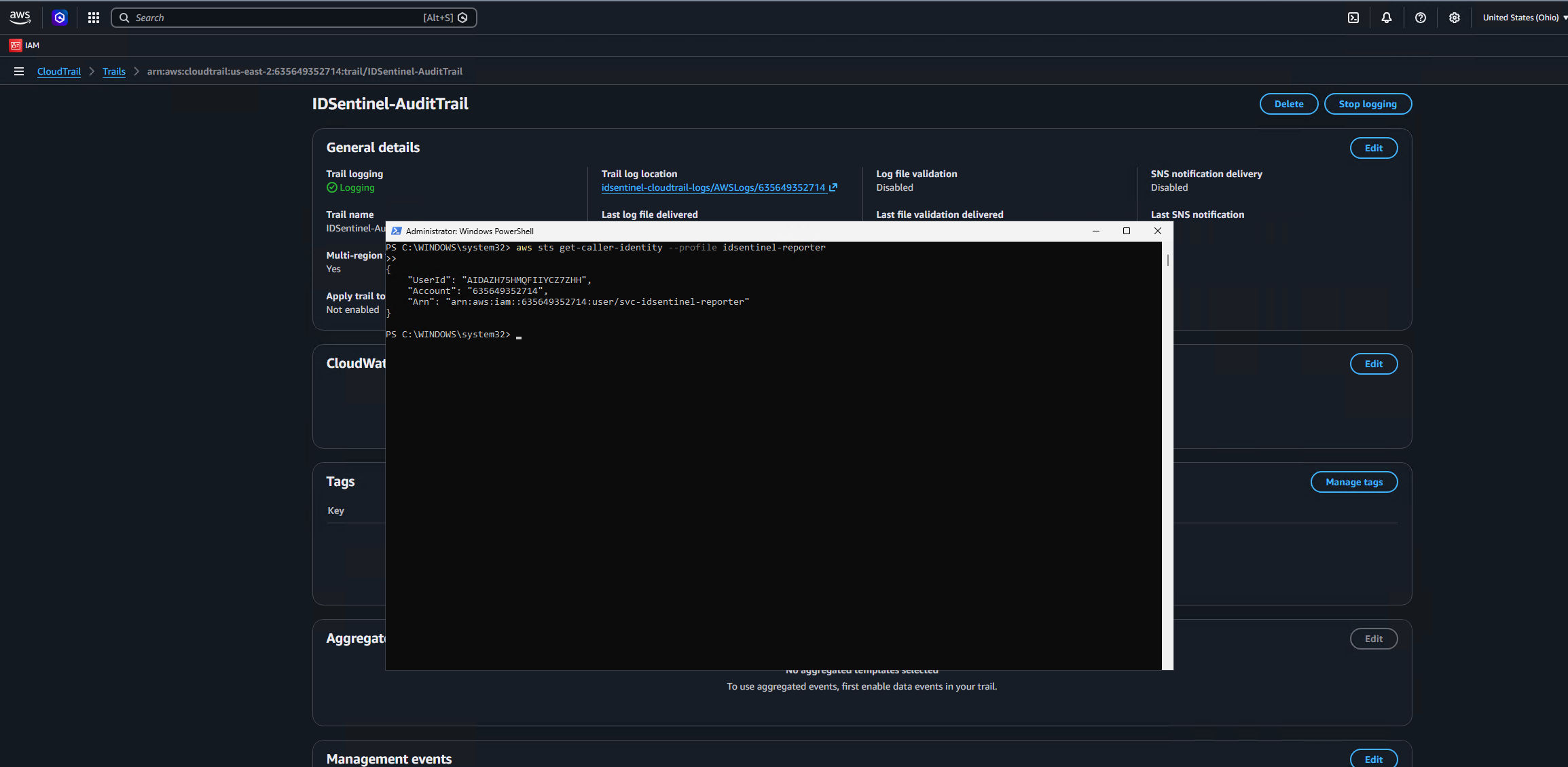

Baseline identity confirmed — user, not role

// 09-assumerole-response expand

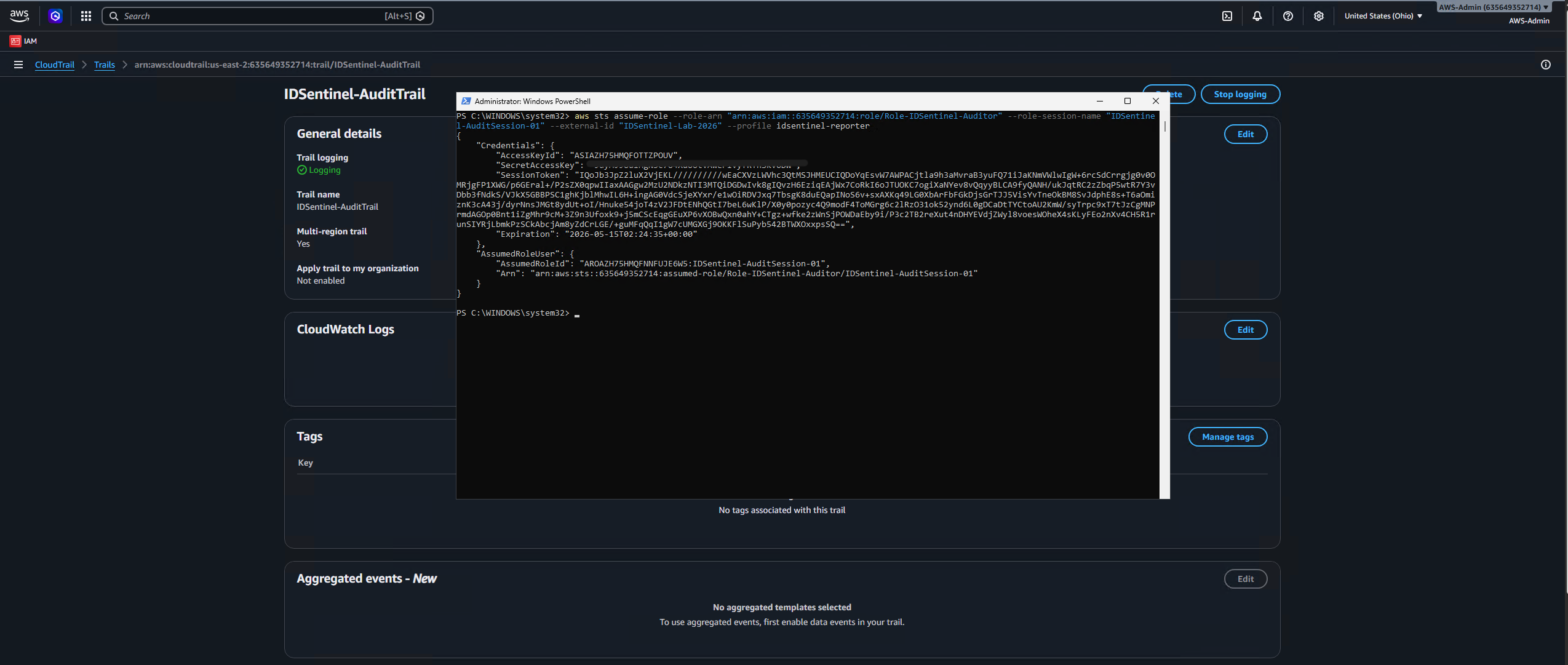

AssumeRole response — temporary credentials issued

// 10-caller-identity-role expand

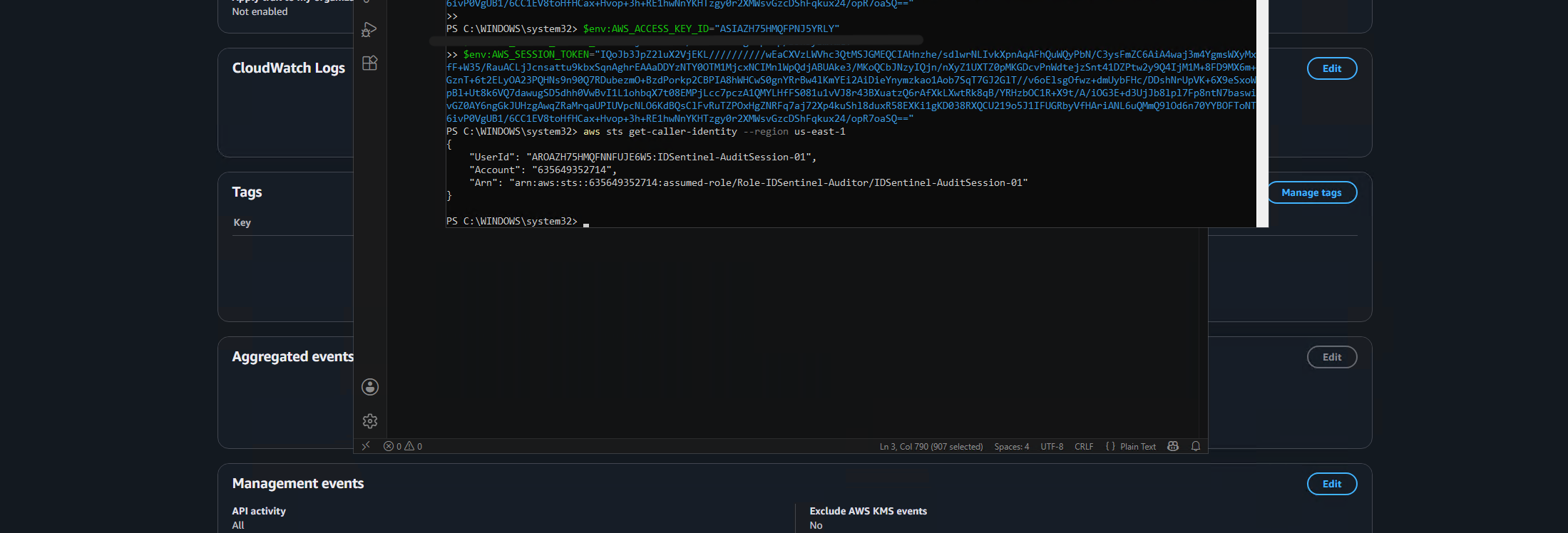

Identity confirmed as Role-IDSentinel-Auditor post-assumption

06

Validate Least-Privilege Enforcement

bash — Read/Write enforcement test

# Should SUCCEED — allowed by ReadOnly grant
aws iam list-users

# Should FAIL — blocked by explicit Deny
aws iam create-user --user-name test-deny-check
# → AccessDenied confirmed ✅

// 11-list-users-allowed expand

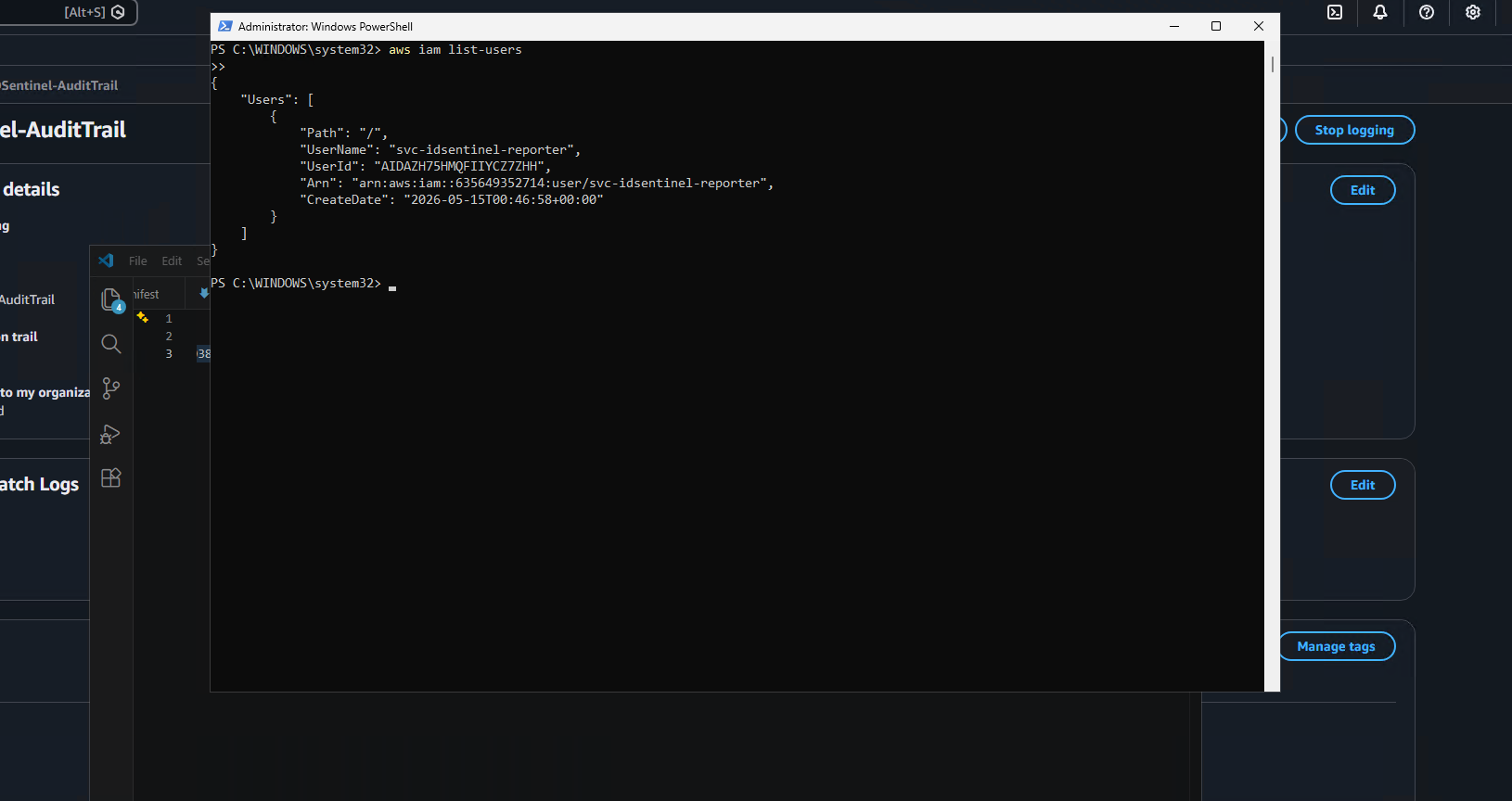

Read action succeeded — allowed by ReadOnly grant

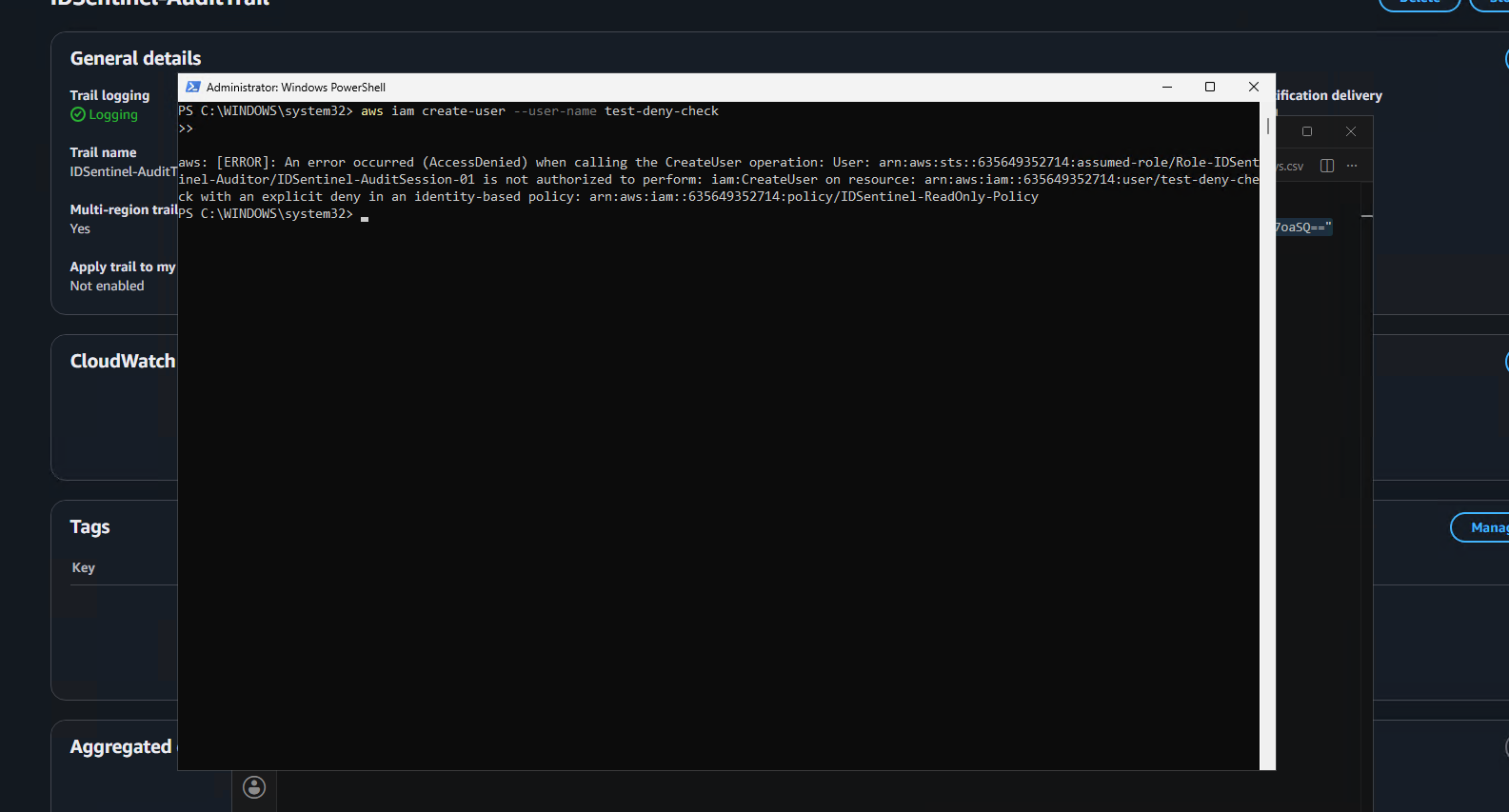

// 12-create-user-denied expand

Write action blocked — AccessDenied confirmed

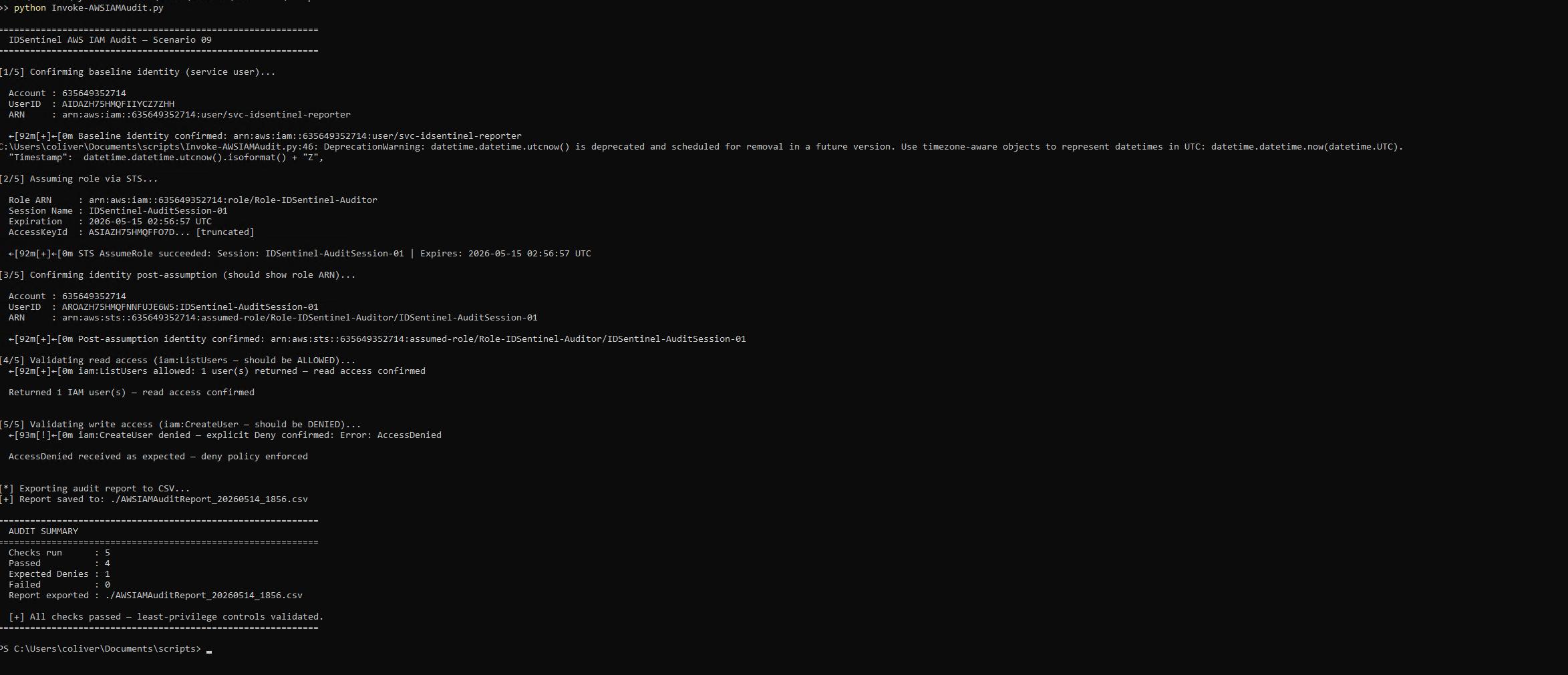

// 13-python-audit-script expand

07

CloudTrail Audit Evidence

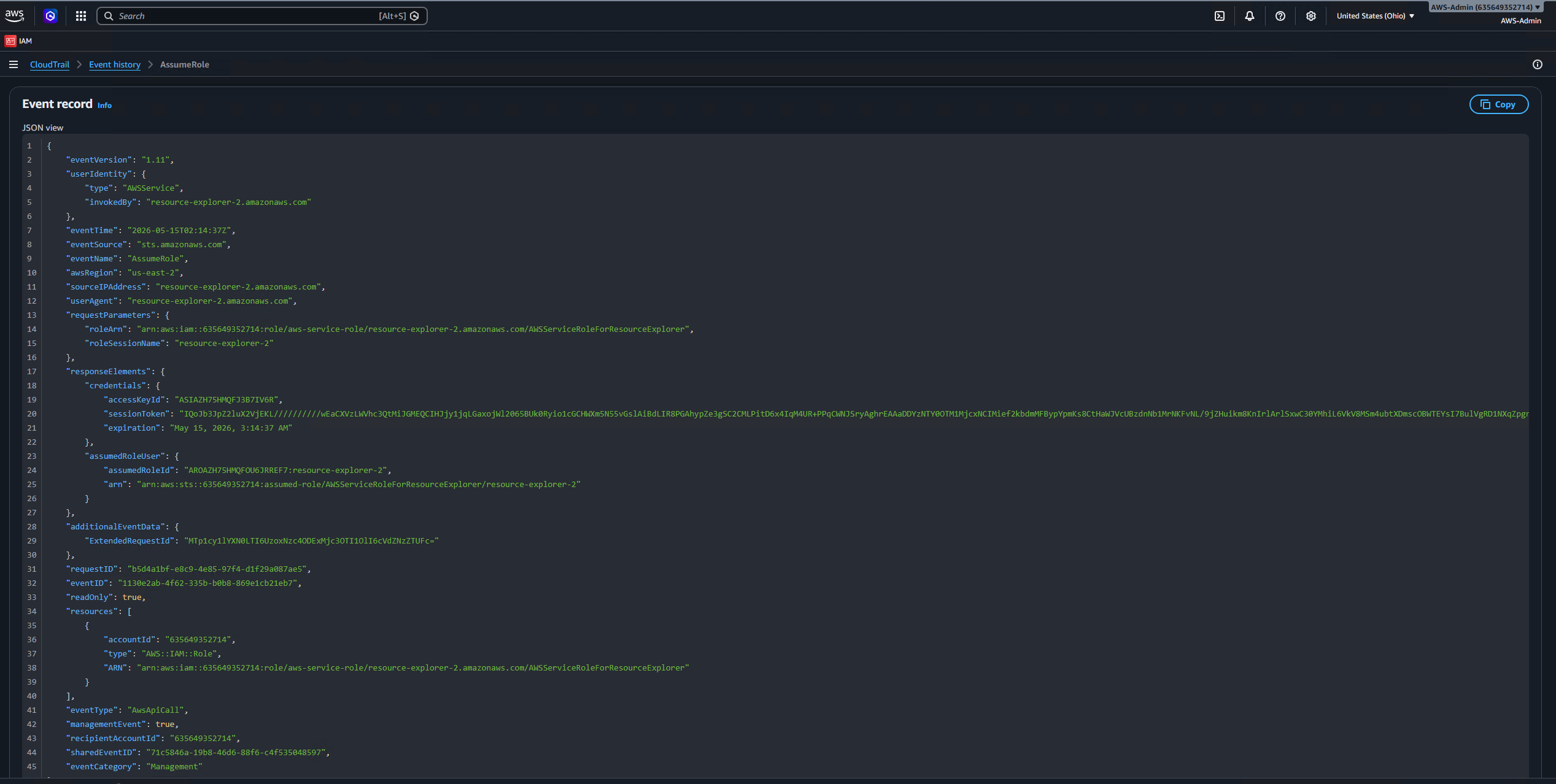

AssumeRole event captured in CloudTrail Event History with full session metadata — principal ARN, session name, ExternalId, source IP, and timestamp — providing complete audit trail for SOC 2 CC6.3 compliance documentation.

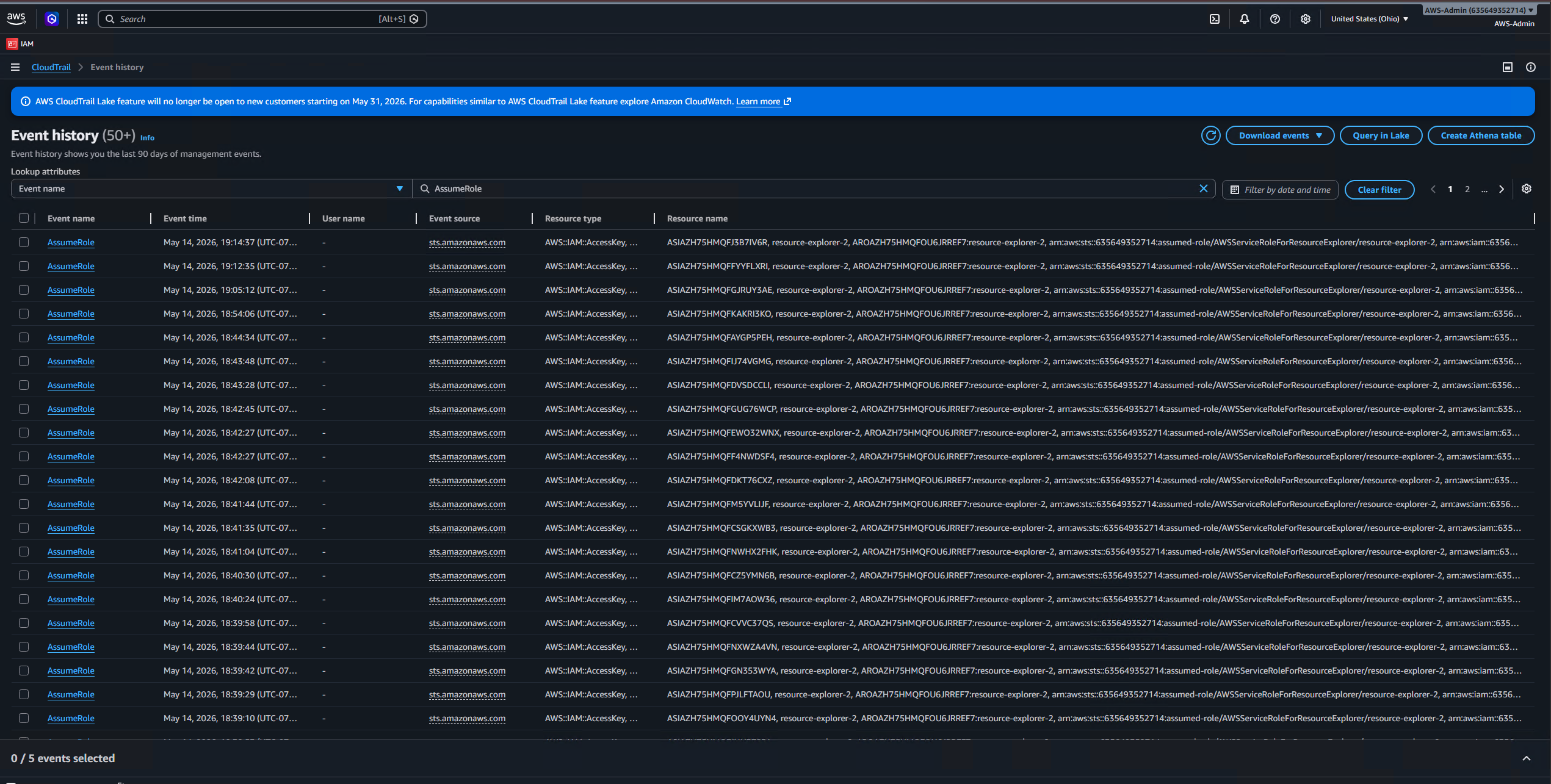

// 14-cloudtrail-assumerole expand

// 15-cloudtrail-event-json expand

Outcome

IAM service user created with programmatic-only access — no console login, no standing permissions

Explicit Deny on all IAM write actions — AccessDenied on iam:CreateUser confirmed

Role assumption with ExternalId condition — confused deputy attack vector closed

Temporary STS credentials used throughout — zero long-lived credentials at any point

CloudTrail AssumeRole event captured with full session metadata as SOC 2 audit evidence

Zero standing administrative access granted at any stage of implementation

Implementation Results

Metric	Value
IAM users created	1 (programmatic only — no console access)
IAM groups created	1 (GRP-IAMReporters)
IAM roles created	1 (Role-IDSentinel-Auditor)
Trust policy scope	Single principal + ExternalId condition
Policy type	Custom — explicit Allow + explicit Deny
Least-privilege violations tested	1 (`iam:CreateUser` → AccessDenied confirmed)
Credential type used	Temporary STS credentials (time-bound)
Long-lived credentials used	0
CloudTrail events captured	AssumeRole with full session metadata
Permanent admin access granted	0

Files

policies/IDSentinel-ReadOnly-Policy.json Least-privilege IAM policy — ReadOnly grant + explicit Deny on all write actions
diagrams/aws-iam-flow.png Architecture and role assumption flow diagram
screenshots/ Evidence across all 7 implementation steps
