SCENARIO 01 Conditional Access Microsoft Entra ID Zero Trust

MFA Bypass via Legacy Authentication

Legacy protocols — SMTP, IMAP, POP3, Basic Auth — were bypassing MFA enforcement org-wide following a company-wide MFA rollout. A Conditional Access policy was designed, validated with What-If, and deployed to block all legacy authentication across 1,108 users within 48 hours.

Conditional Access Sign-in Logs What-If Tool Block Legacy Auth PowerShell Graph API

Business Problem

IDSentinel Solutions recently completed a company-wide MFA rollout across Microsoft Entra ID. Following the rollout, the Security team identified a critical gap during a routine sign-in log review: a significant number of users were still authenticating via legacy protocols — SMTP, IMAP, POP3, and Basic Auth — which completely bypass MFA enforcement.

An internal audit confirmed that several third-party email clients and older line-of-business applications were configured to use Basic Authentication, meaning a stolen credential alone was sufficient to grant full mailbox and application access with no additional verification required.

This is a direct violation of IDSentinel's Zero Trust initiative and creates unacceptable risk of account compromise via credential stuffing and password spray attacks.

Risk

  • MFA rendered ineffective for any account using legacy authentication
  • No visibility into legacy auth attempts without explicit log filtering
  • Active threat vector: password spray attacks targeting legacy endpoints
  • Non-compliant with IDSentinel's Zero Trust access initiative
  • Potential compliance exposure under SOC 2 Type II controls

Scope

FieldDetail
Affected usersAll 1,108 employees across all departments
Affected protocolsSMTP Auth, IMAP, POP3, Basic Authentication
TargetBlock all legacy authentication org-wide within 48 hours
Exception processDocument and track any legitimate exemptions

Solution Design

A Conditional Access policy was implemented to block all legacy authentication protocols across the organization. The rollout follows a staged approach to minimize business disruption.

STAGE 1

Audit Mode — Report-Only

Deploy policy in report-only mode for 24 hours to identify impacted users before enforcement begins.

STAGE 2

Enforcement

Switch policy to enabled after reviewing report-only sign-in logs and notifying impacted teams.

Key Design Decisions:

  • Block conditionTargets "Other clients" and legacy auth client app filters — covers all legacy protocol sign-ins
  • Break-glass exclusionGRP-SEC-BreakGlass accounts excluded from policy scope
  • Exemption groupGRP-SEC-LegacyAuthExempt created for time-limited exceptions requiring change control approval
  • ScopeAll users with targeted exclusions only — no broad exclusions

Implementation

Prerequisites: Microsoft Entra ID P1 or P2 license · Conditional Access Administrator or Security Administrator role · Sign-in logs reviewed prior to enforcement

  • 01

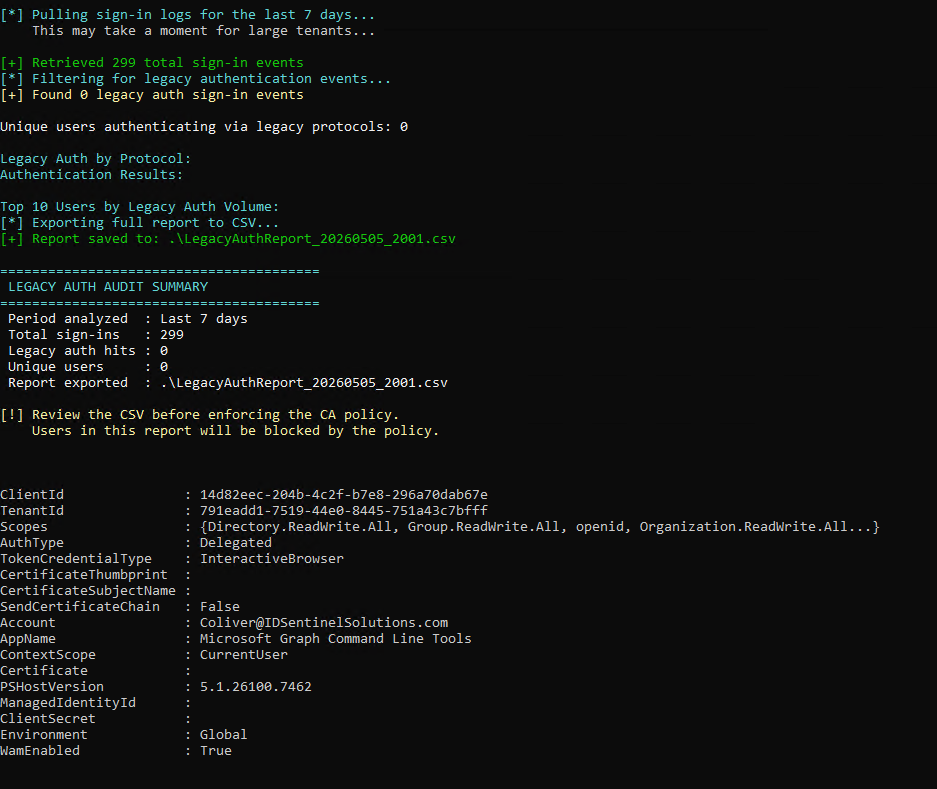

    Review Legacy Auth Sign-in Logs

    Baselined current legacy auth volume using Sign-in logs and a PowerShell audit script before deploying any policy. Established the scope of the problem before enforcement.

  • 02

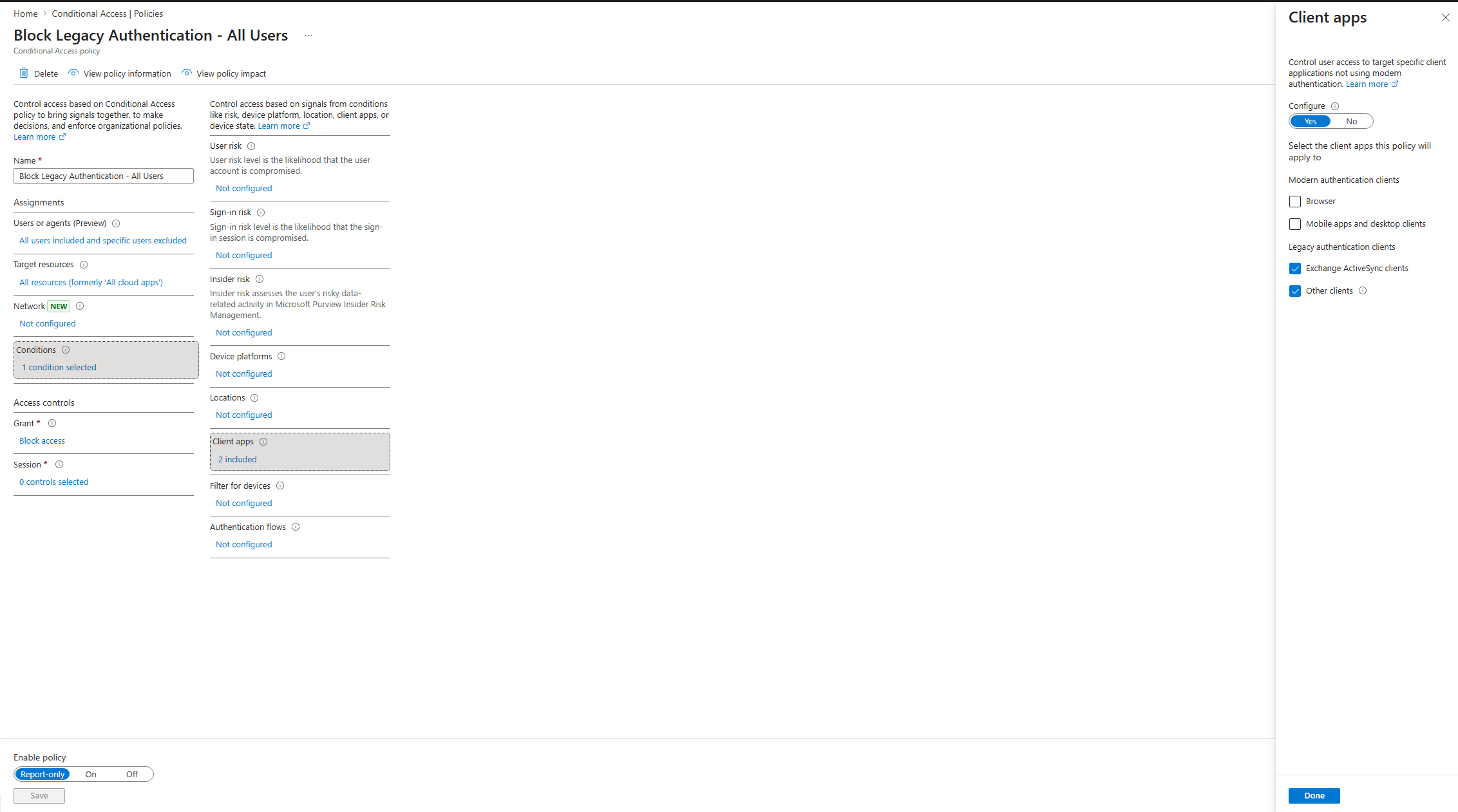

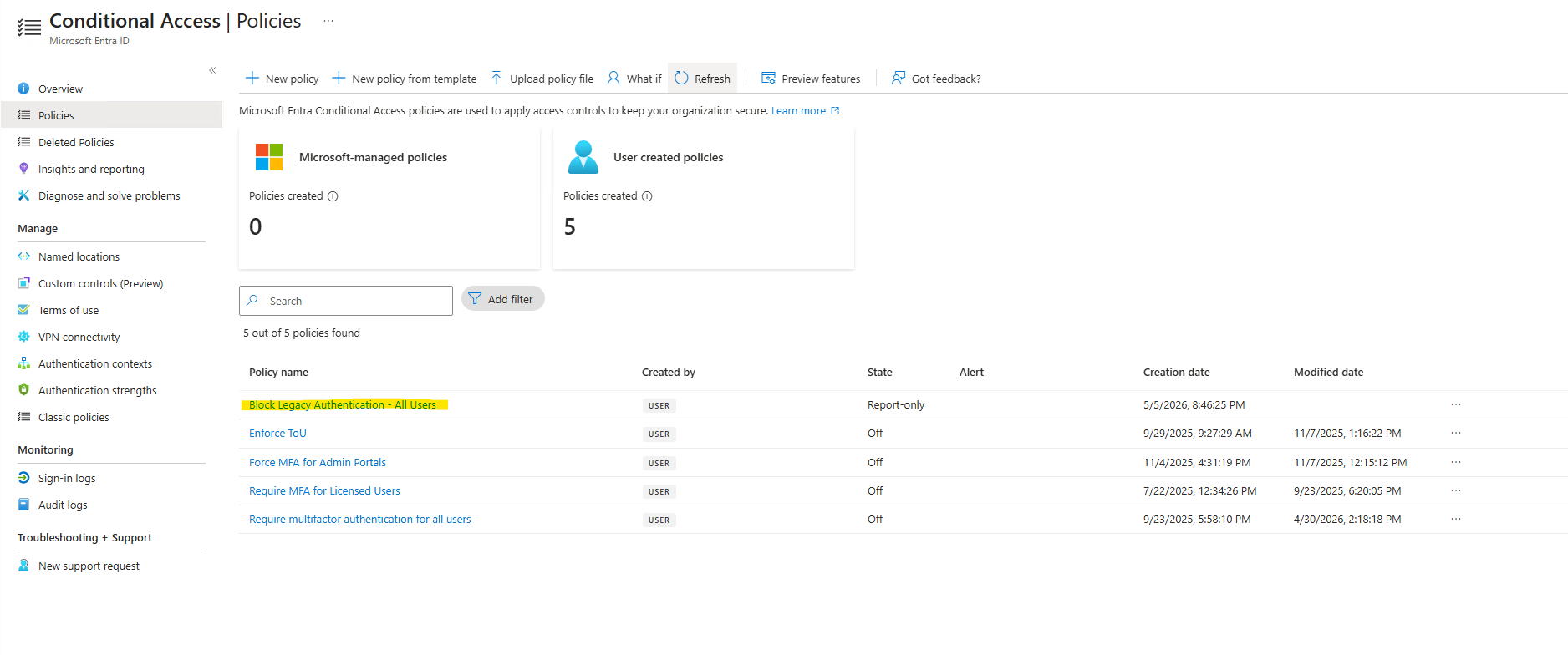

    Deploy Policy in Report-Only Mode

    Conditional Access policy deployed in report-only mode. Sign-in logs monitored for 24 hours to identify impacted users and applications without blocking any access.

  • 03

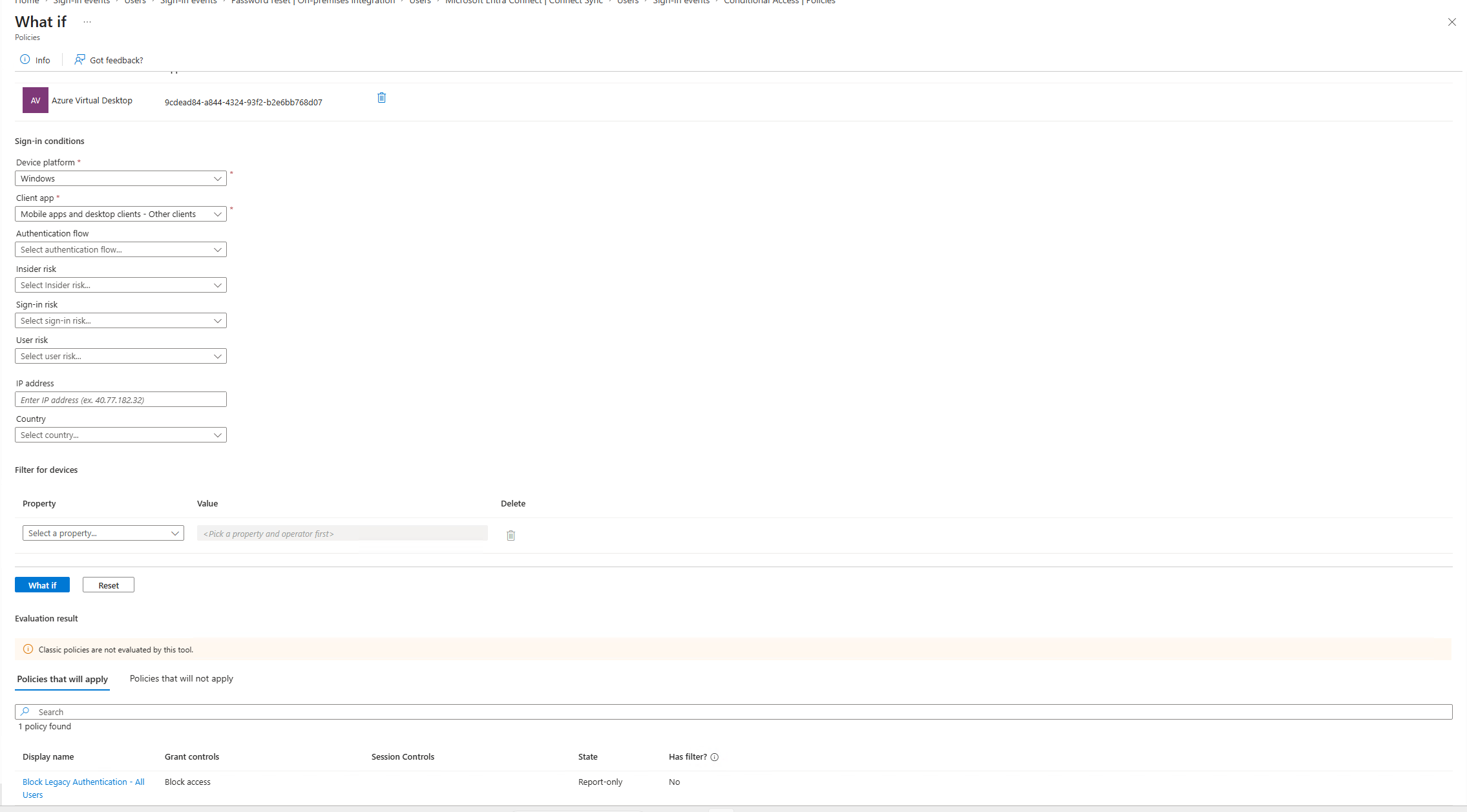

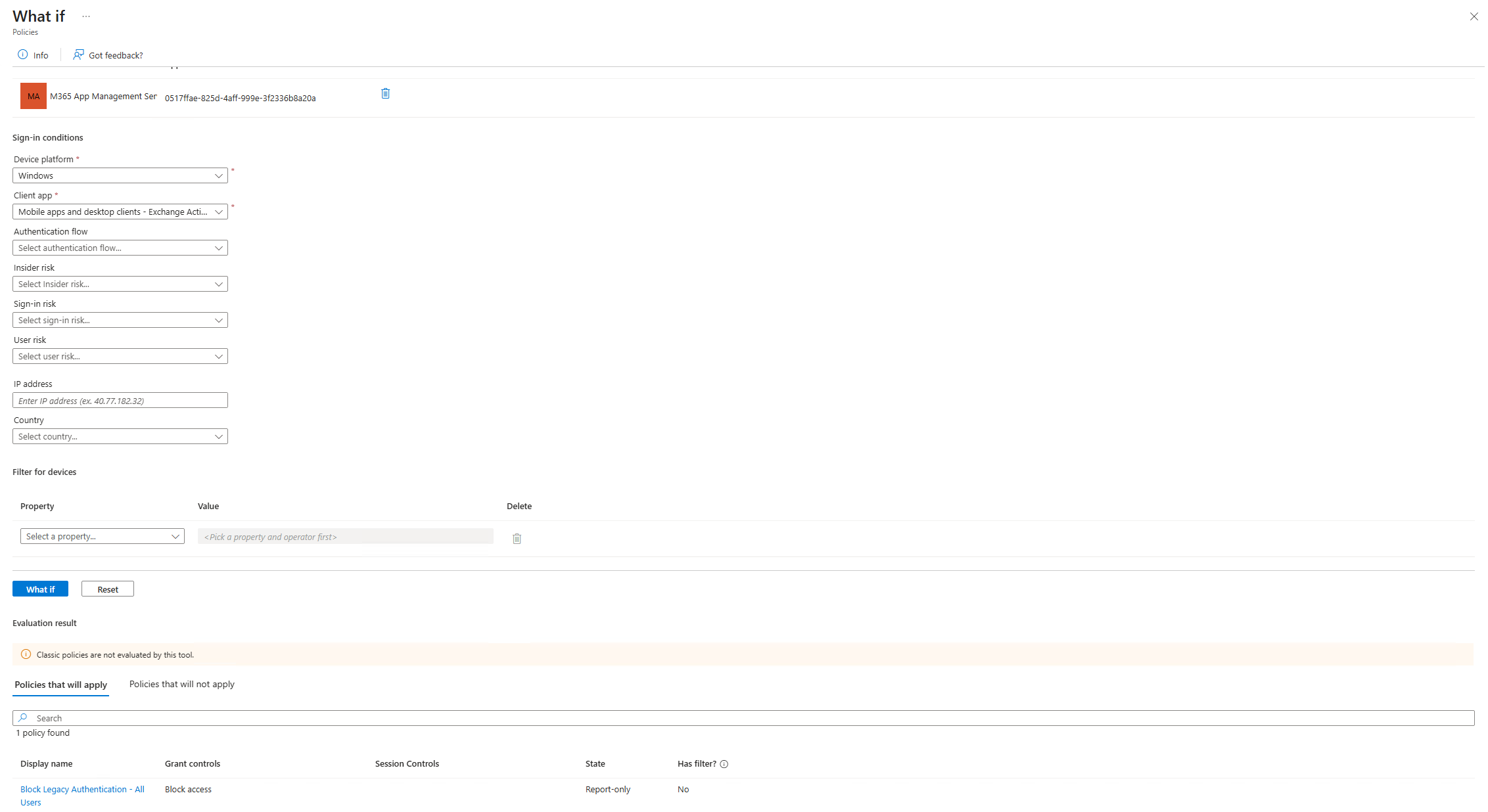

    Validate Policy with What-If Tool

    Prior to enforcement, the What-If tool was used to simulate legacy auth sign-in scenarios across Exchange ActiveSync and Other client types — confirmed the policy would block as expected before any users were impacted.

  • 04

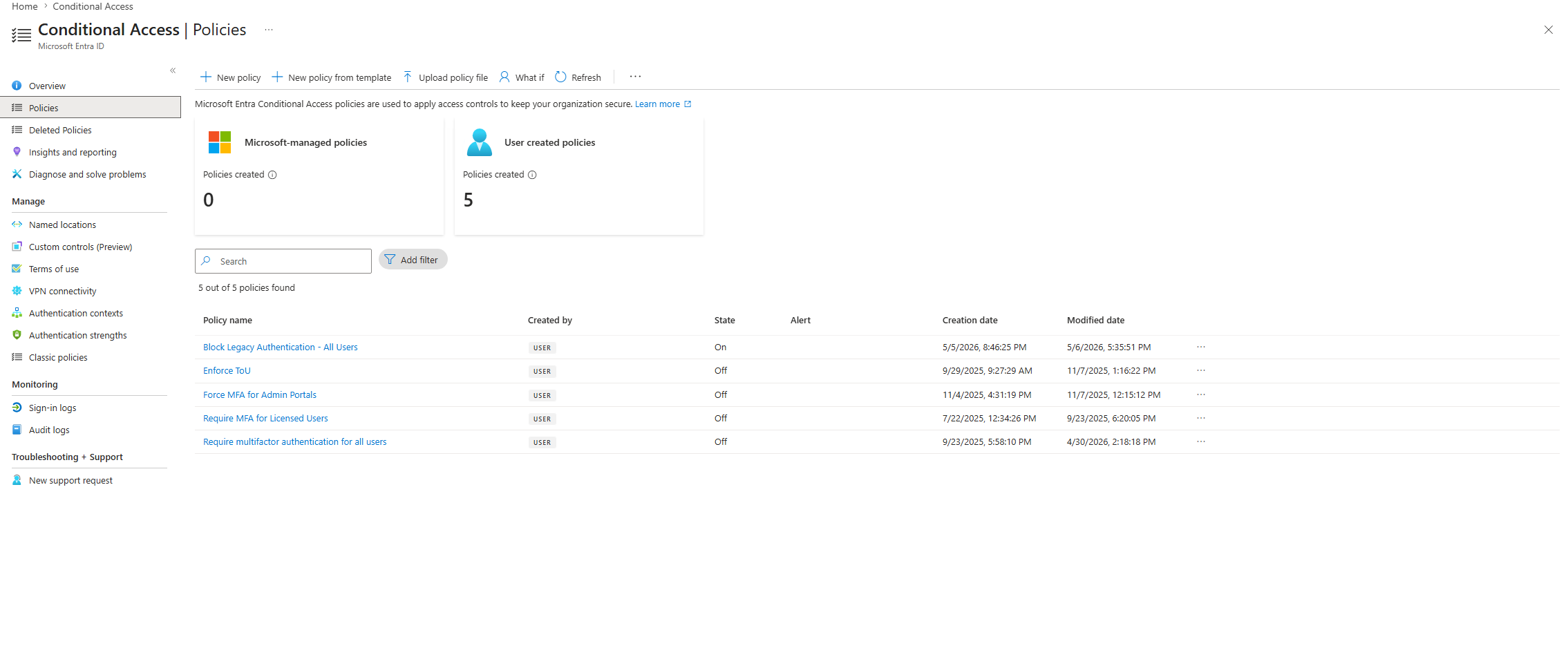

    Switch Policy to Enabled

    After 24-hour report-only validation and stakeholder notification, policy switched from report-only to enabled. Legacy authentication now blocked org-wide.

  • 05

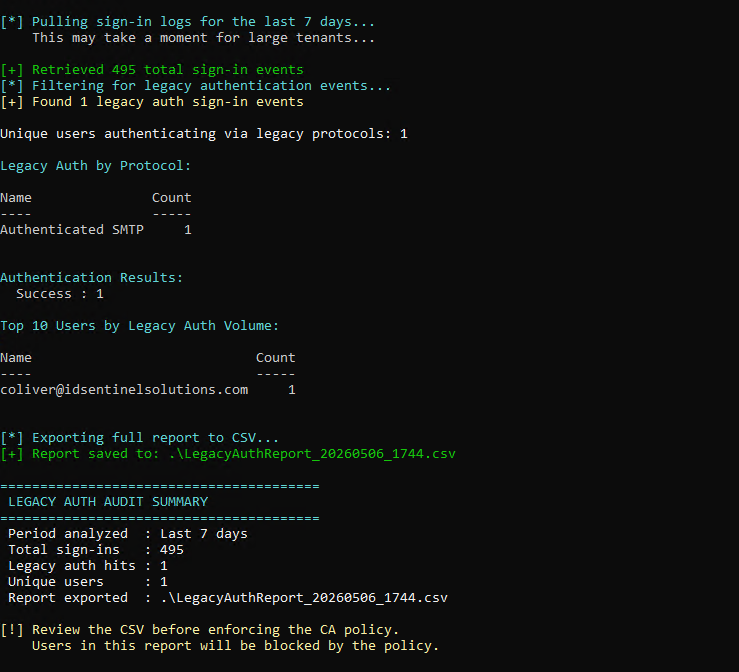

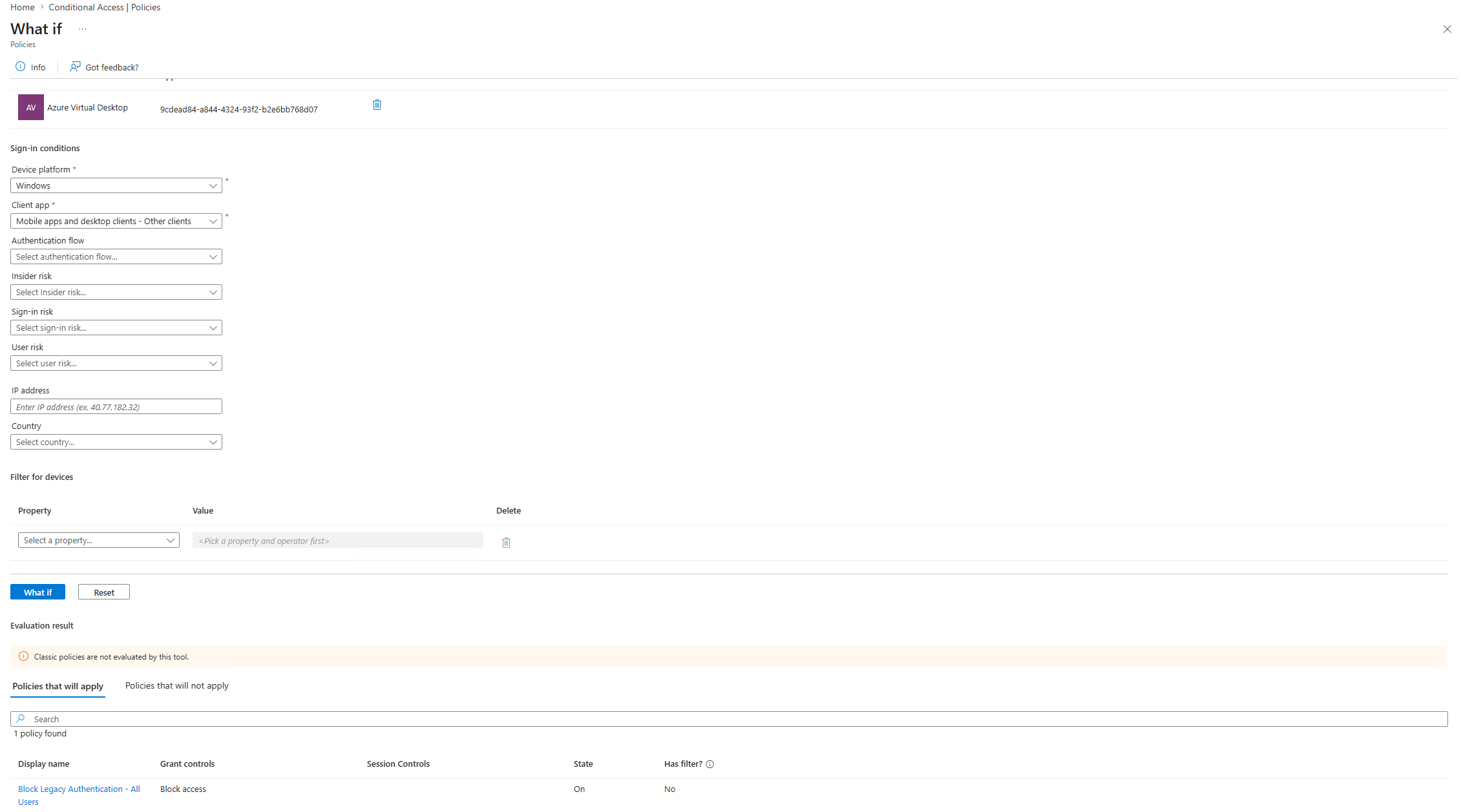

    Post-Enforcement Validation

    What-If tool re-run to confirm enforced block on all legacy auth client types. Audit script re-run confirmed zero unauthorized legacy auth sign-ins post-enforcement. One Authenticated SMTP attempt detected from a privileged account during testing — flagged and added to exemption group pending mail client reconfiguration.

Outcome

CA policy deployed in report-only mode for 24-hour validation before enforcement
What-If tool confirmed policy blocks all legacy auth across Exchange ActiveSync and Other client types
Legacy authentication now blocked org-wide — policy switched to enabled
Post-enforcement audit detected 1 legacy auth attempt — flagged, exemption granted with 30-day review window
Full CSV report exported for SOC 2 compliance documentation
Zero unauthorized legacy auth attempts detected post-enforcement

Audit Results

MetricValue
Audit period7 days
Total sign-in events495
Legacy auth attempts detected1
Unique users flagged1
ProtocolAuthenticated SMTP
ResultDetected and flagged — exemption granted pending remediation

Files

  • scripts/Get-LegacyAuthReport.ps1Audits legacy auth sign-ins via Graph API and exports CSV compliance report

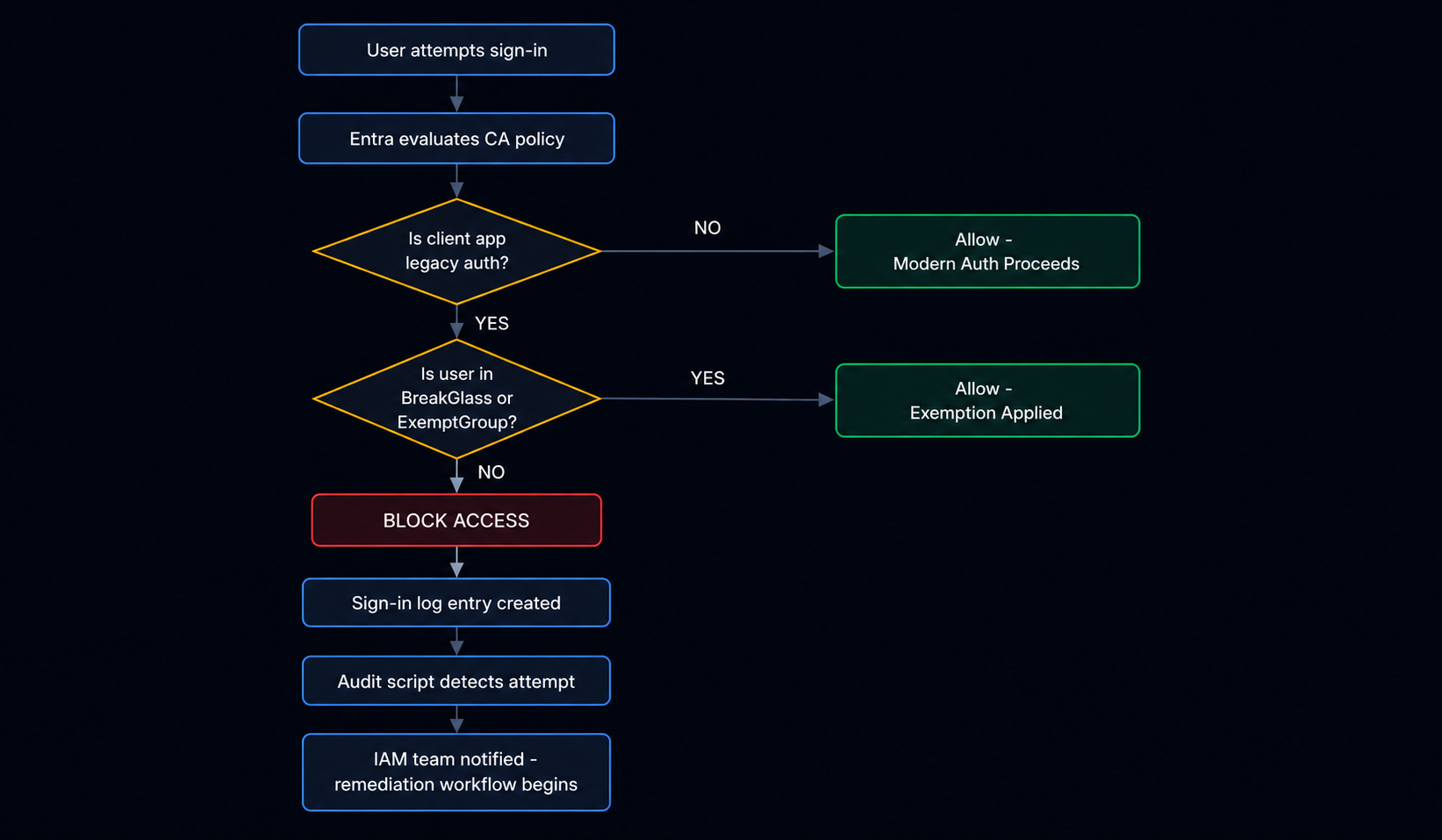

  • diagrams/ca-policy-flow.pngConditional Access decision flow diagram
  • screenshots/Evidence of implementation at each stage — report-only config, What-If validation, enforcement, post-audit
