Scenario 08 — CIAM Login Platform with Auth0

Business Problem

IDSentinel Solutions was onboarding a new customer-facing SaaS application requiring a secure, branded login experience for external customers. Without a dedicated CIAM platform, customer accounts would need to be provisioned inside the corporate Entra ID tenant — co-mingling external users with employees, violating data separation principles, and creating an unscalable support burden.

The IAM team was tasked with designing and deploying a Customer Identity and Access Management (CIAM) platform using Auth0 — a dedicated external identity tenant fully isolated from the corporate Entra ID environment.

Risk

Customer identities co-mingled with employee accounts — violates least-privilege and data separation principles
No self-service registration or password reset — support desk handles all customer access requests
Username/password only — no MFA path for customer accounts creates credential stuffing exposure
No token-based API protection — customer-facing endpoints unauthenticated or using insecure API key patterns
No customer authentication audit trail — compliance exposure under SOC 2 Type II

Scope

Field	Detail
Affected population	External SaaS customers — fully isolated from employee and contractor accounts
Identity platform	Auth0 (dedicated CIAM tenant)
Protocols	OIDC, OAuth2 — Universal Login and client credentials flow
Identity providers	Auth0 database connection + Google social federation
MFA	Email OTP — Always policy, enforced on every sign-in
API protection	Bearer JWT scoped to `read:data`, audience `https://api.idsentinel.com`
Compliance target	SOC 2 Type II

Solution Design — 4 Workstreams

WS 1

Auth0 Tenant and Application Registration

Dedicated Auth0 tenant provisioned as an isolated CIAM directory. Web application and protected API registered separately.

WS 2

Universal Login and Custom Branding

Auth0 Universal Login configured as the hosted authentication endpoint. Custom branding applied. Self-service sign-up and password reset enabled.

WS 3

Google Social Identity Federation

Google configured as an external OIDC identity provider. Auth0 maps Google claims to the local customer profile — customers not dependent on Google remaining their IdP.

WS 4

API Protection with OAuth2

Protected API registered with custom read:data scope. Client credentials flow used to issue scoped JWT access tokens validated against a protected endpoint.

Key design decision: Universal Login over embedded login — Auth0's recommended security pattern. Prevents credential interception at the application layer. JWT access tokens scoped to API audience https://api.idsentinel.com — tokens cannot be replayed against other services.

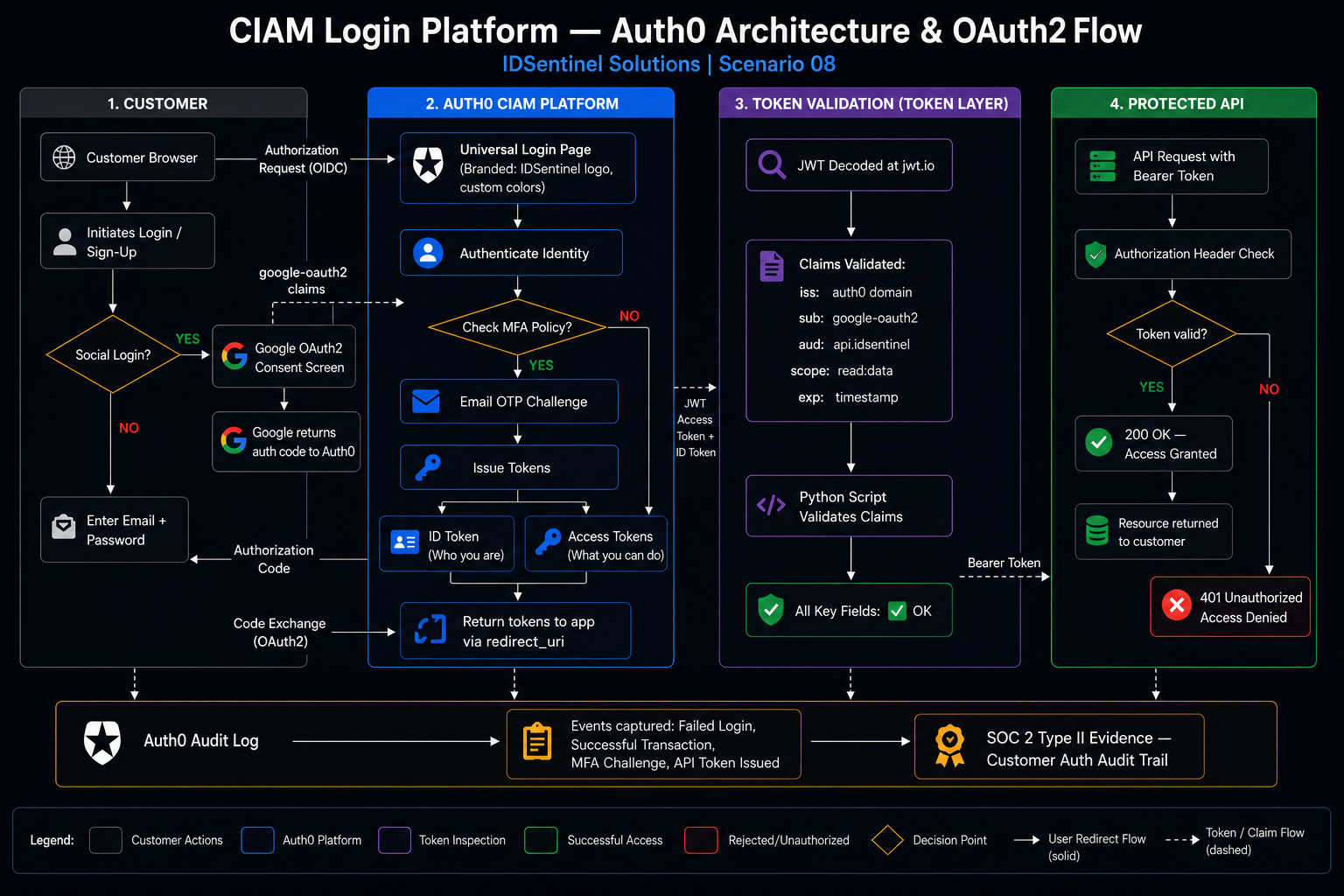

// diagrams/ciam-auth0-architecture.png — CIAM platform architecture diagram expand

Implementation

01

Provision Auth0 Tenant + Register Applications

Dedicated Auth0 tenant created — customer-only identity space, no employee accounts, no CA policies, no group memberships. Web app IDSentinel-CustomerApp and API IDSentinel-CustomerAPI registered with identifier https://api.idsentinel.com and custom read:data permission scope.

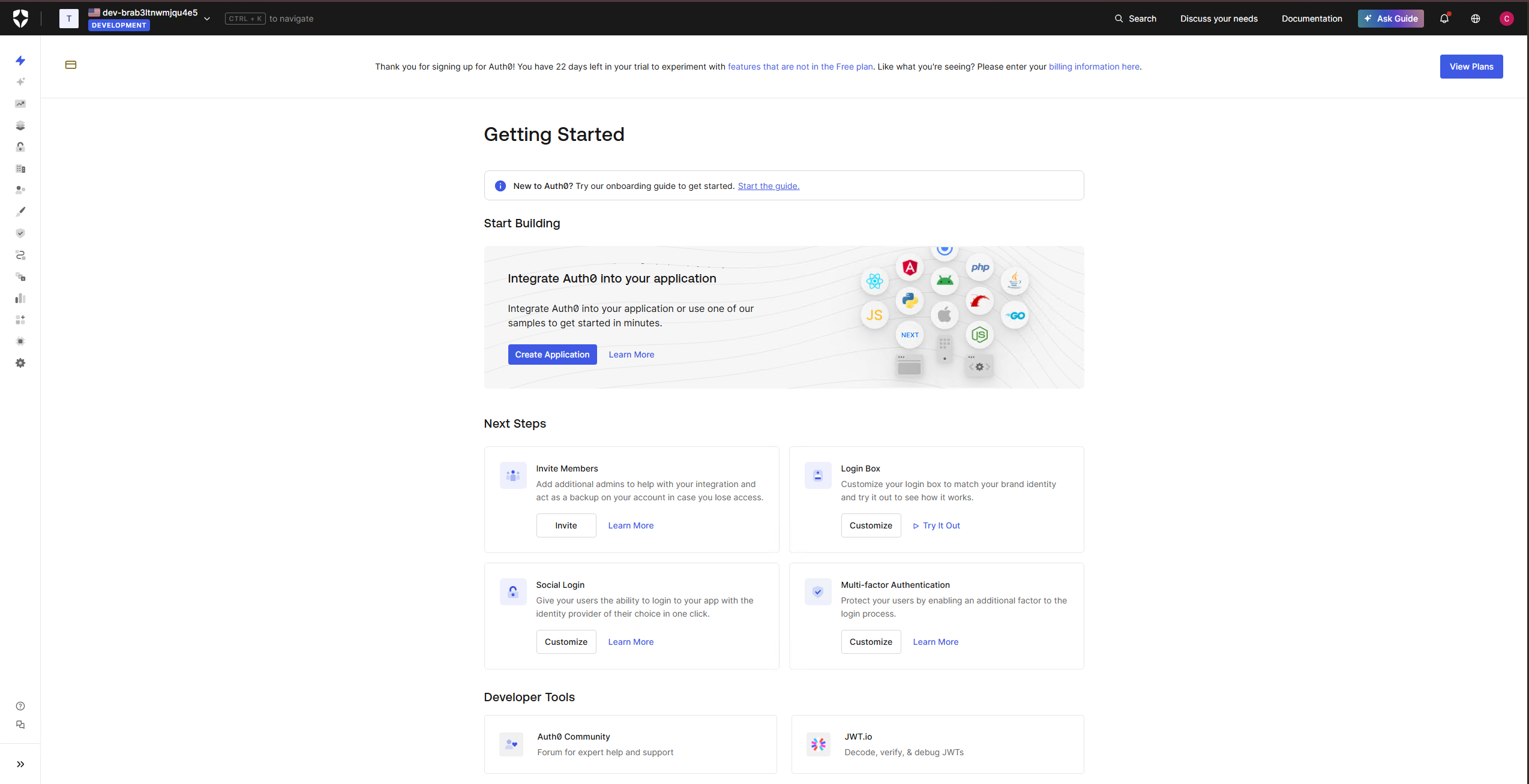

// 01-auth0-tenant-dashboard expand

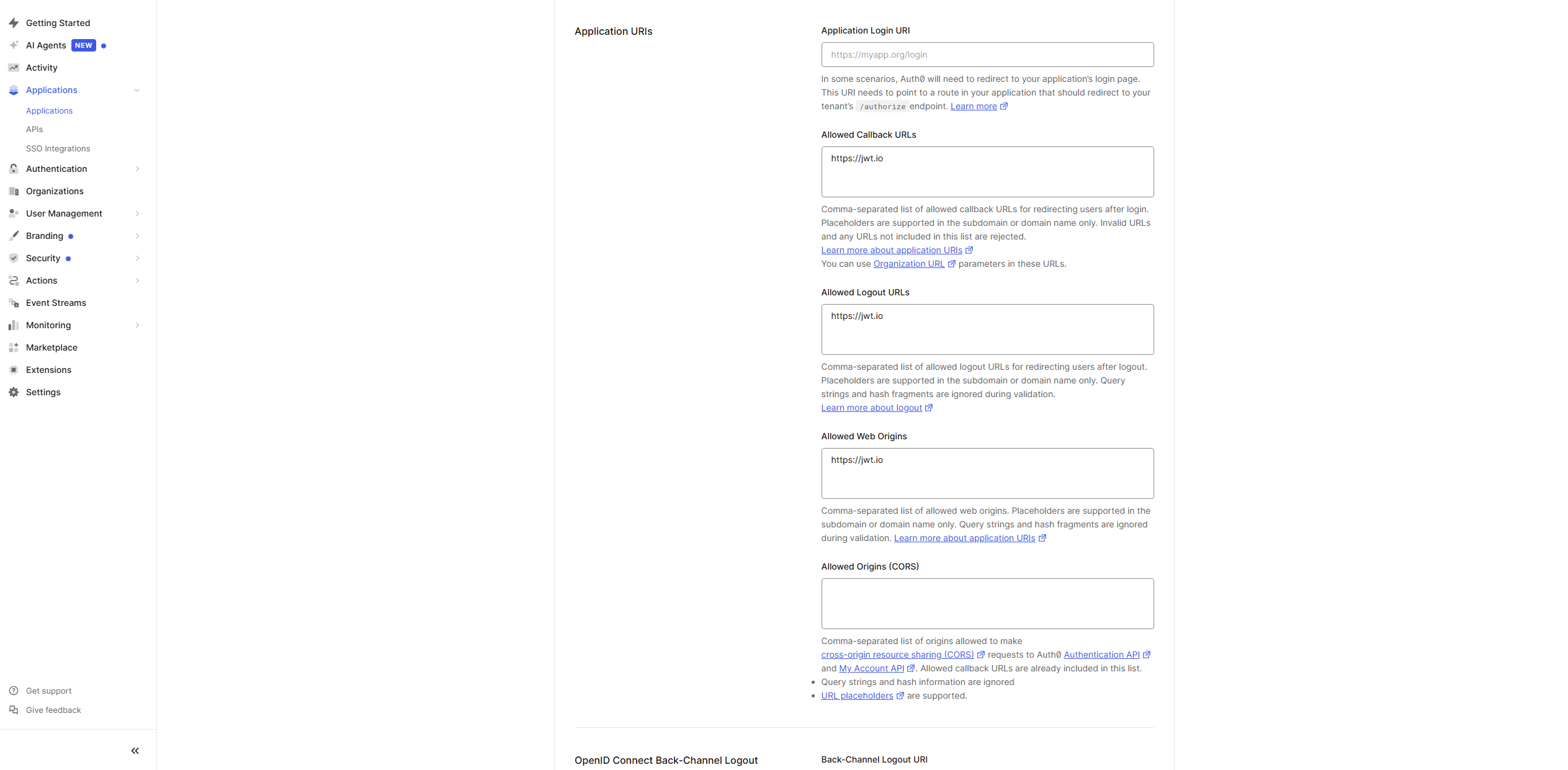

// 02-app-registration-auth0 expand

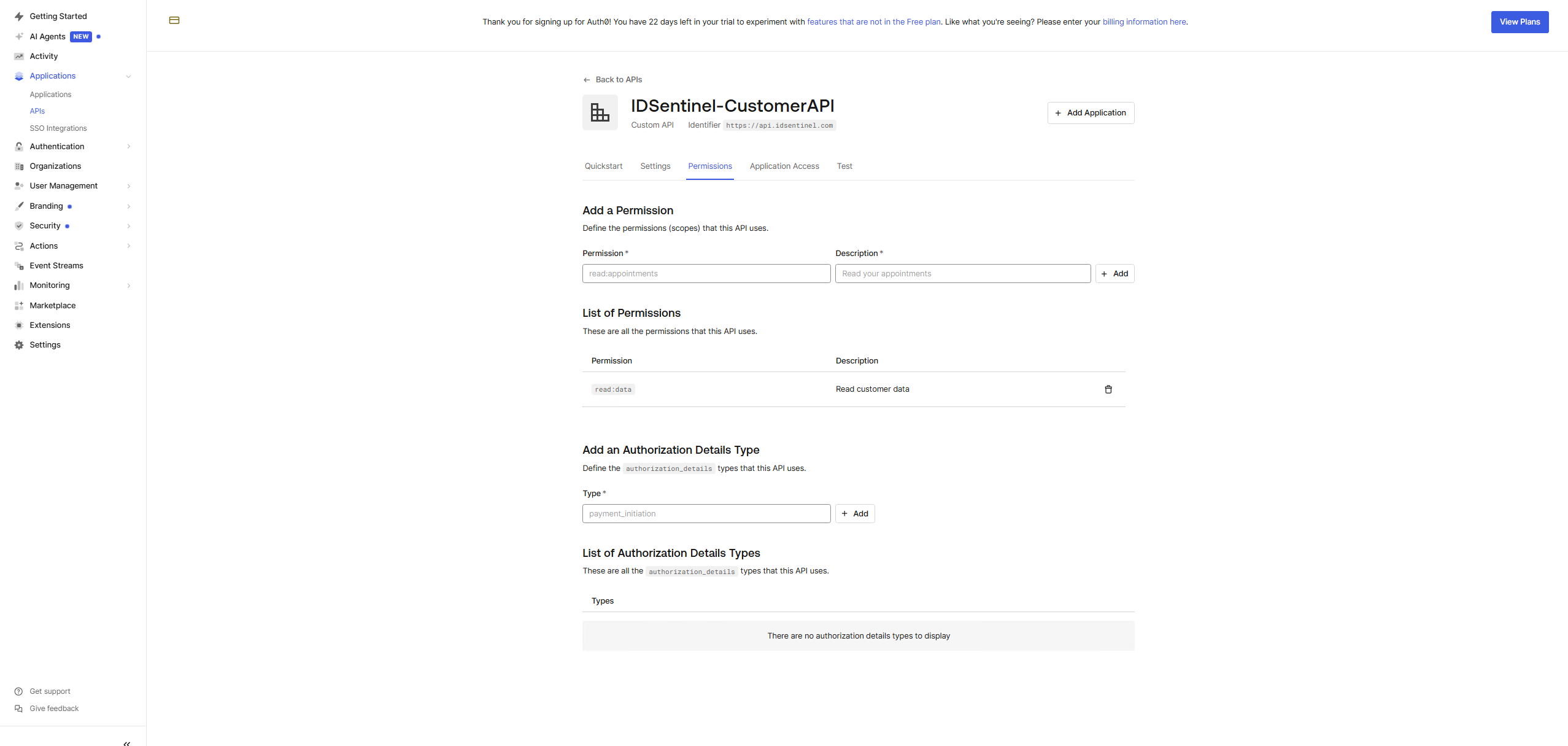

// 03-api-registration-auth0 expand
02

Configure Universal Login and Branding

New Universal Login experience enabled. IDSentinel logo, primary color, and background applied. Self-service sign-up tested end-to-end — customer account created and confirmed in Auth0 user store with identity provider listed as auth0.

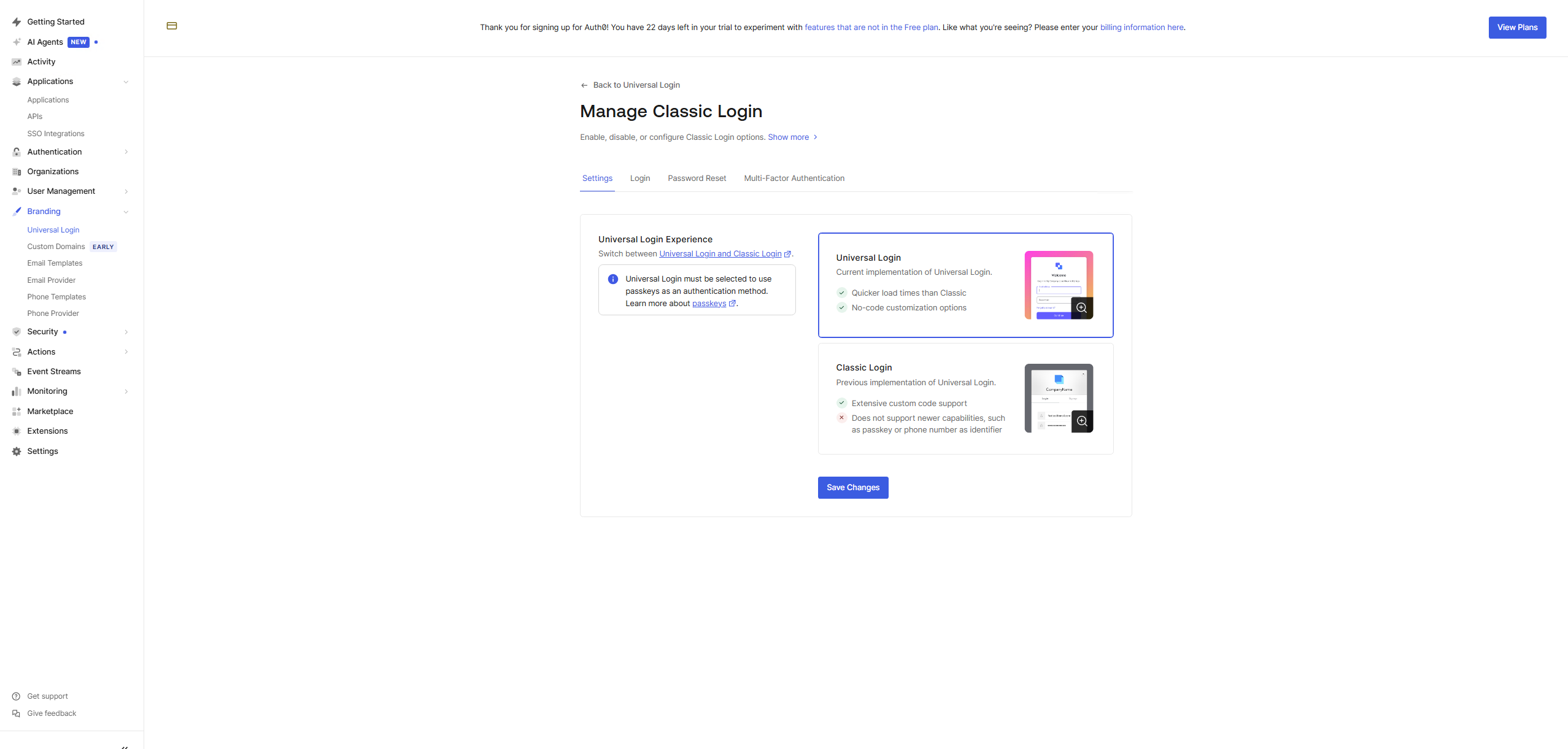

// 04-universal-login-config expand

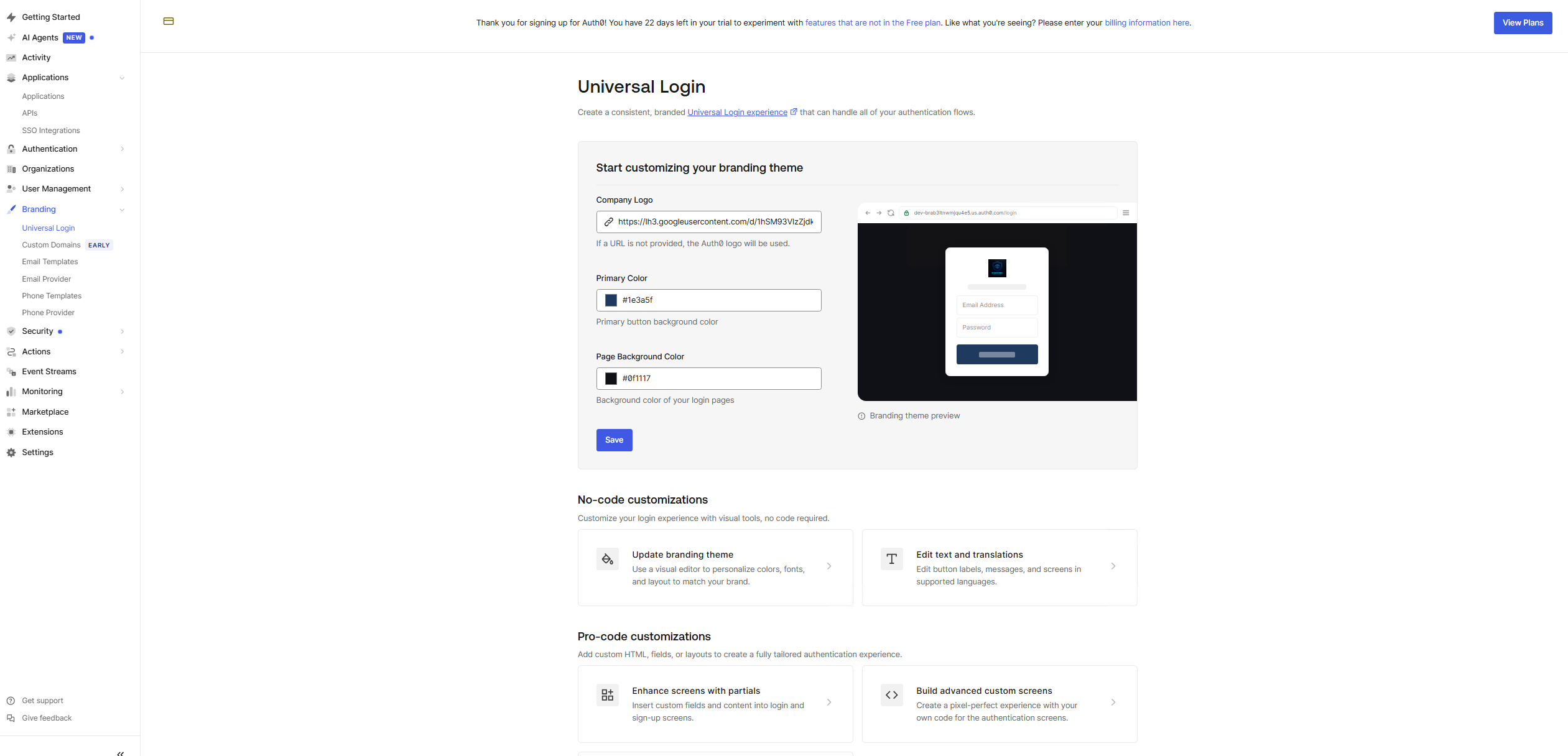

// 05-custom-branding expand

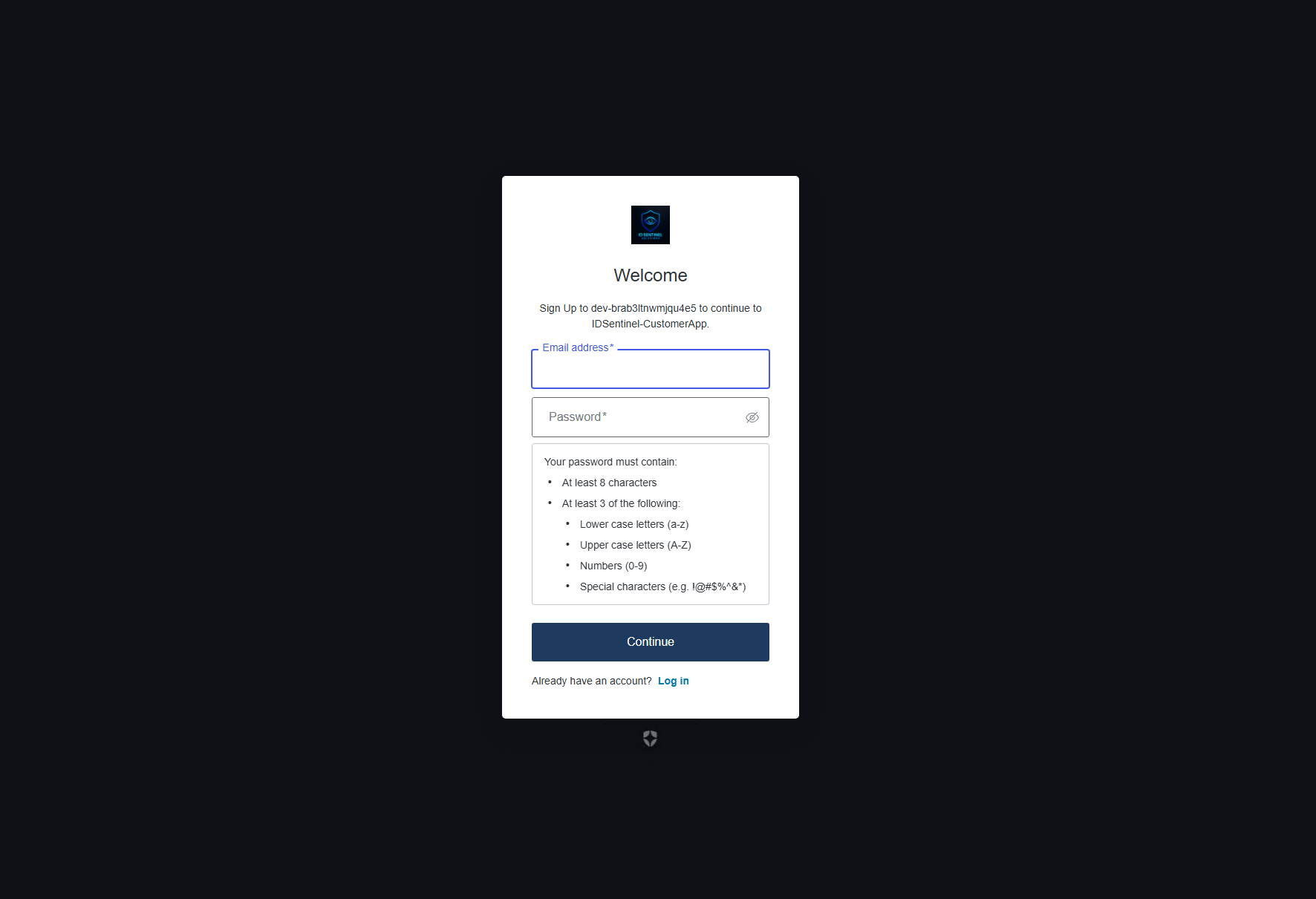

// 06-signup-signin-test expand

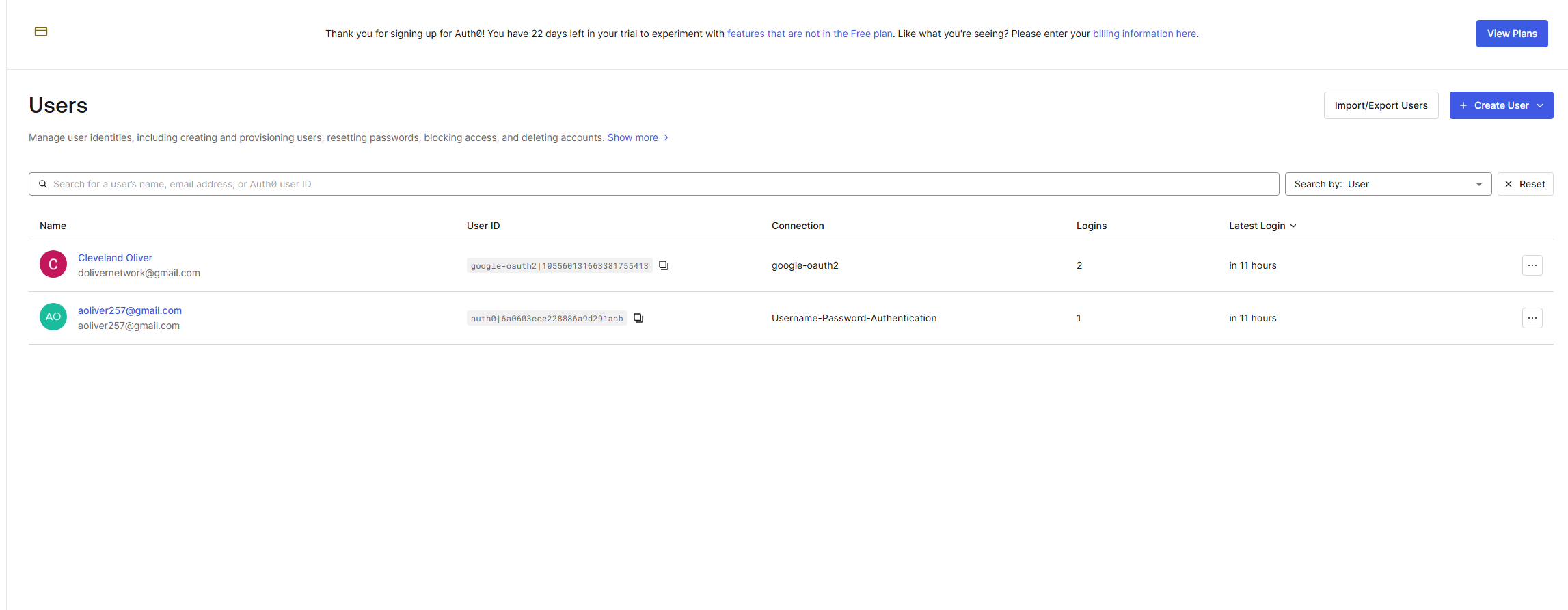

// 07-user-created-auth0 expand
03

Configure Google Social Federation

Google Cloud project created with OAuth2 consent screen and OAuth2 Client ID. Auth0 callback URL registered as an authorized redirect URI. Google social connection enabled on IDSentinel-CustomerApp and validated end-to-end — google-oauth2 linked identity confirmed in user store.

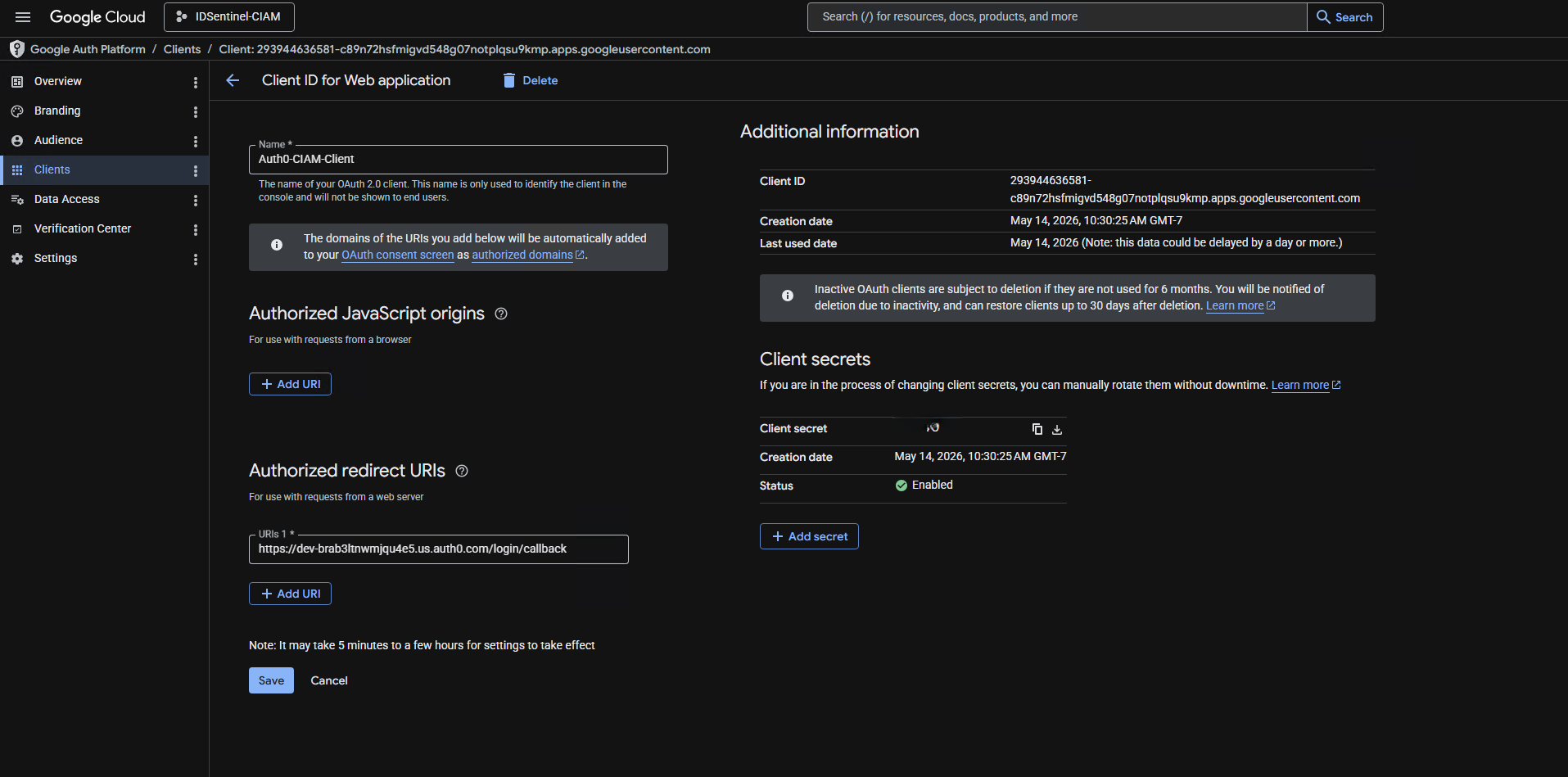

// 08-google-cloud-credentials expand

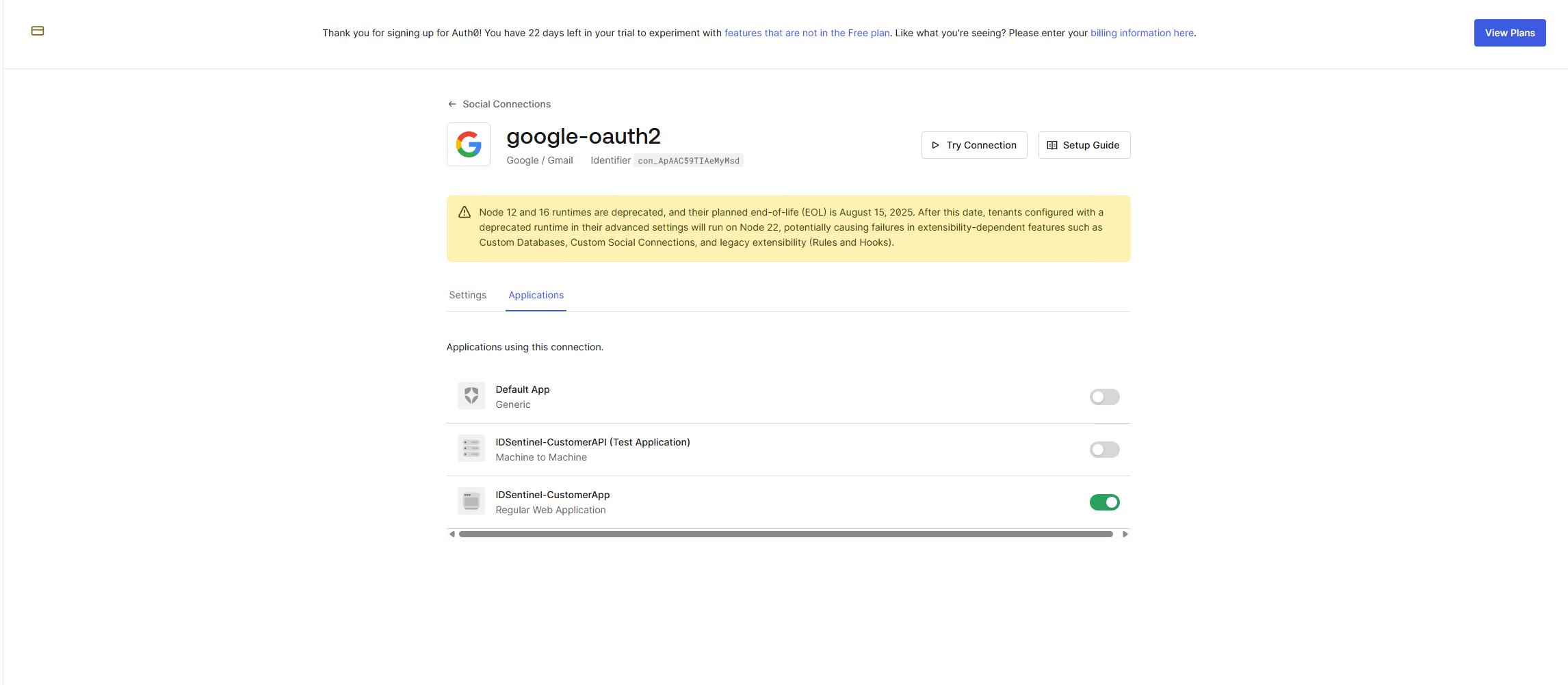

// 09-google-social-connection expand

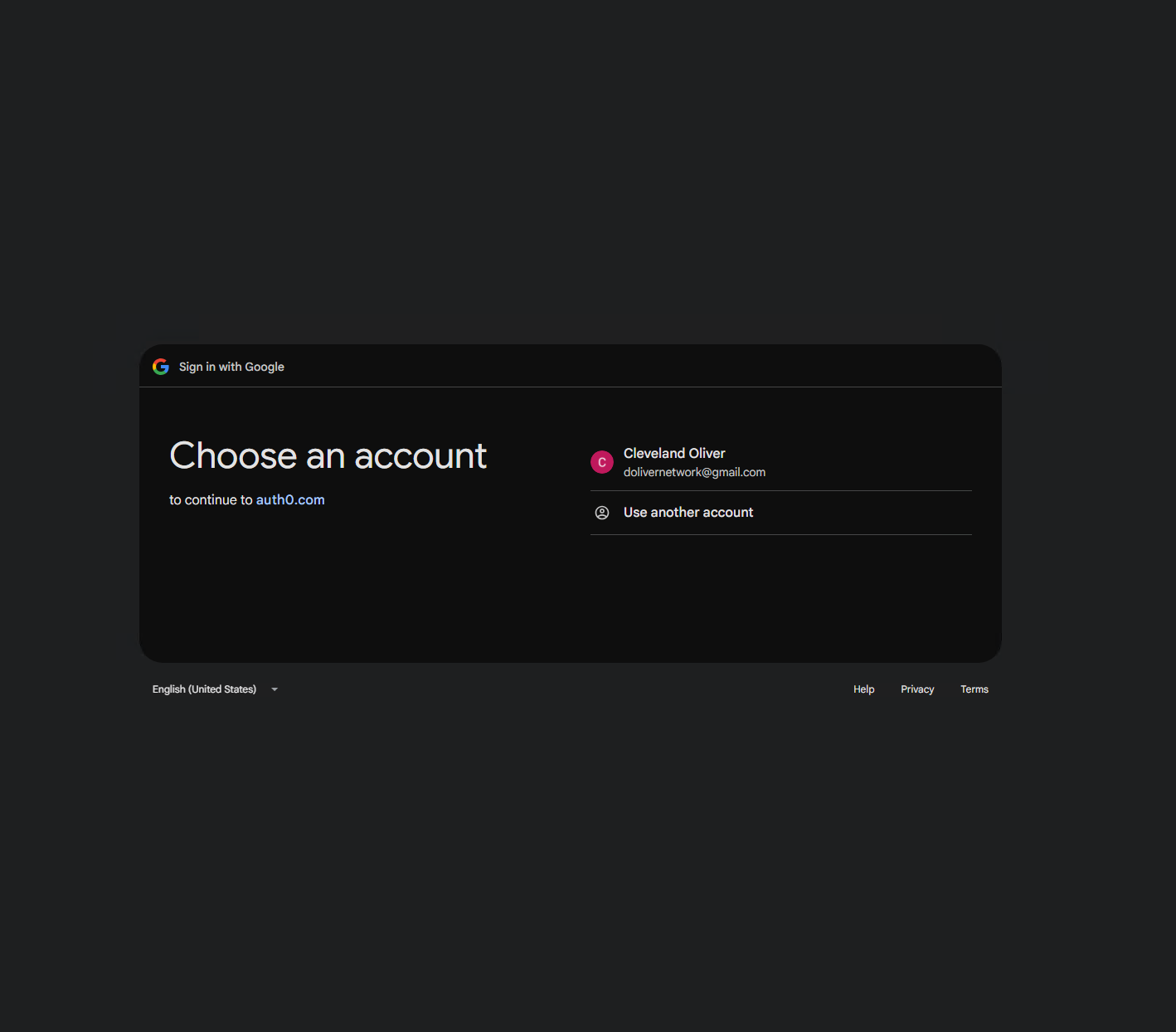

// 10a-google-login-test expand

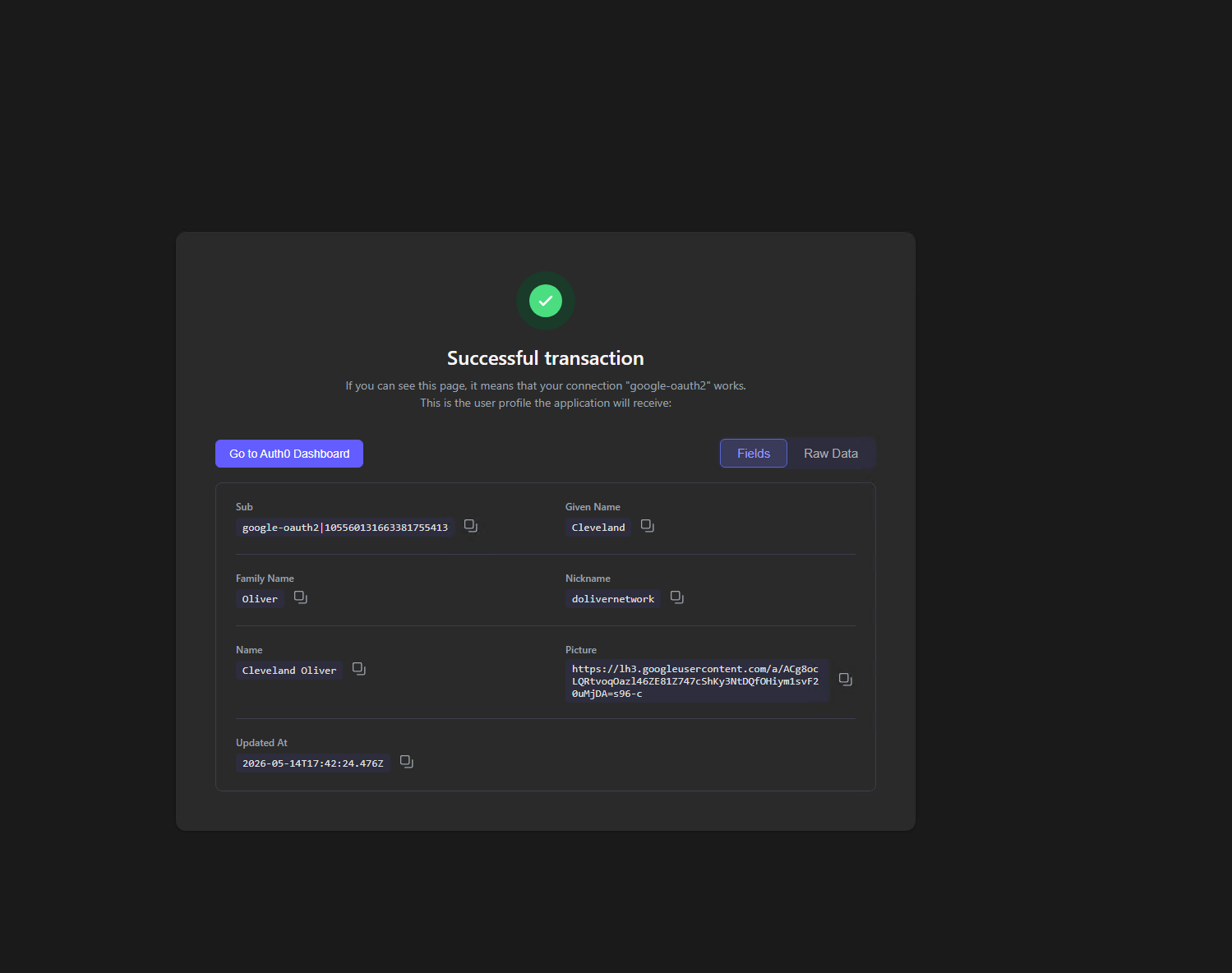

// 10b-google-login-test expand

04

Validate OAuth2 Token + API Protection

Client credentials flow executed in Postman against the Auth0 token endpoint. JWT decoded at jwt.io — claims confirmed:

Claim	Value
`iss`	Auth0 tenant URL
`aud`	`https://api.idsentinel.com`
`scope`	`read:data`
`exp`	Token expiry timestamp

Bearer token passed to protected endpoint — "authenticated": true confirmed. Request without token returned 401 Unauthorized.

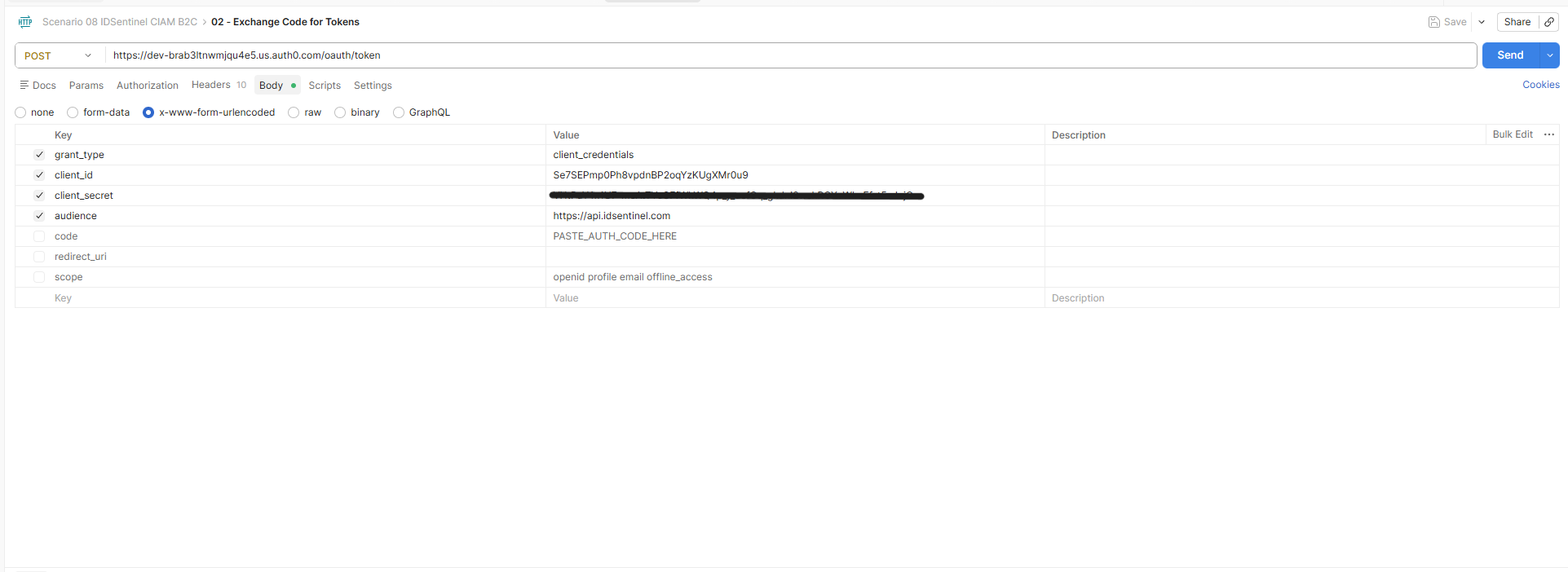

// 11-postman-token-request expand

Client credentials token request in Postman

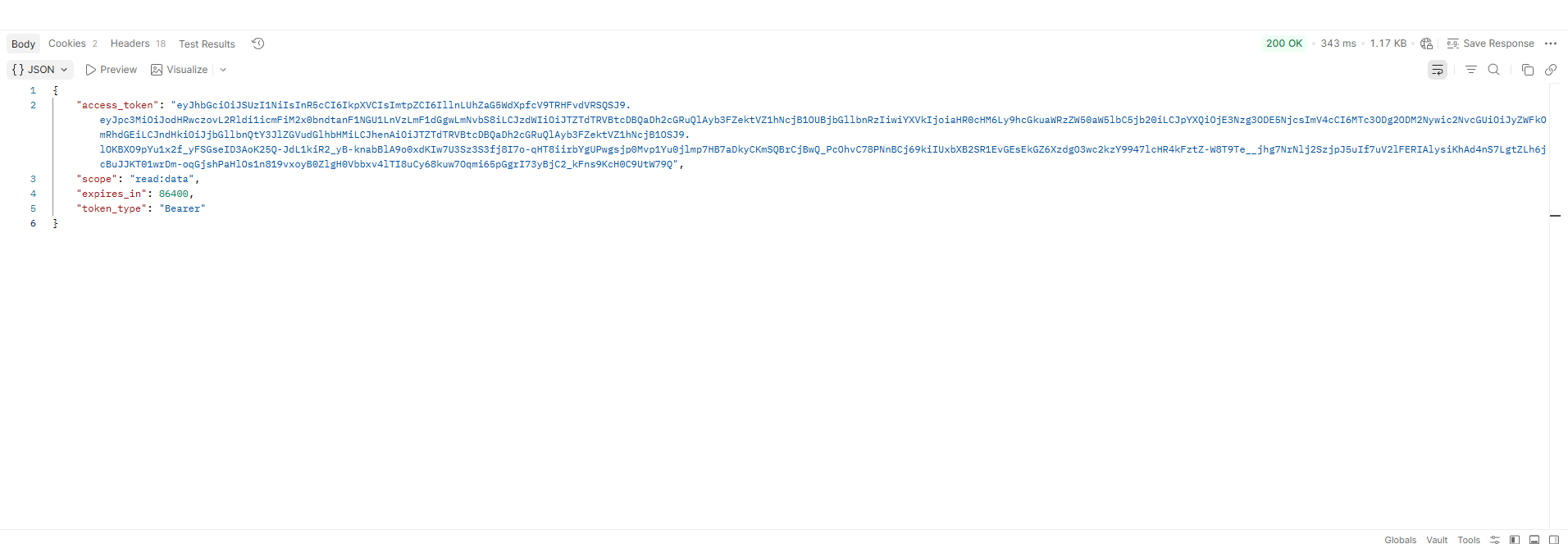

// 12-postman-token-response expand

Access token returned — scoped to read:data

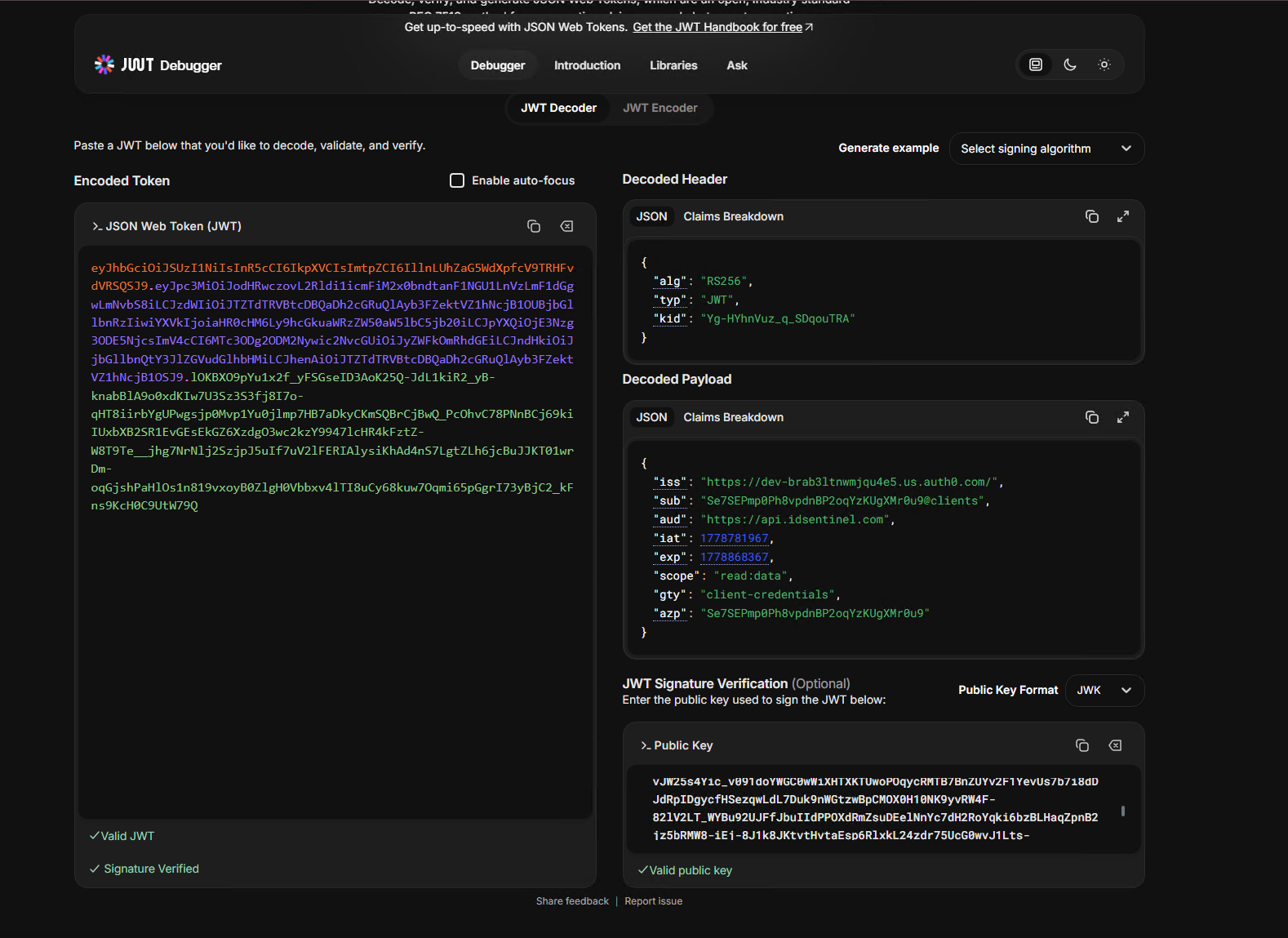

// 13-jwt-decoded expand

JWT decoded at jwt.io — all claims confirmed

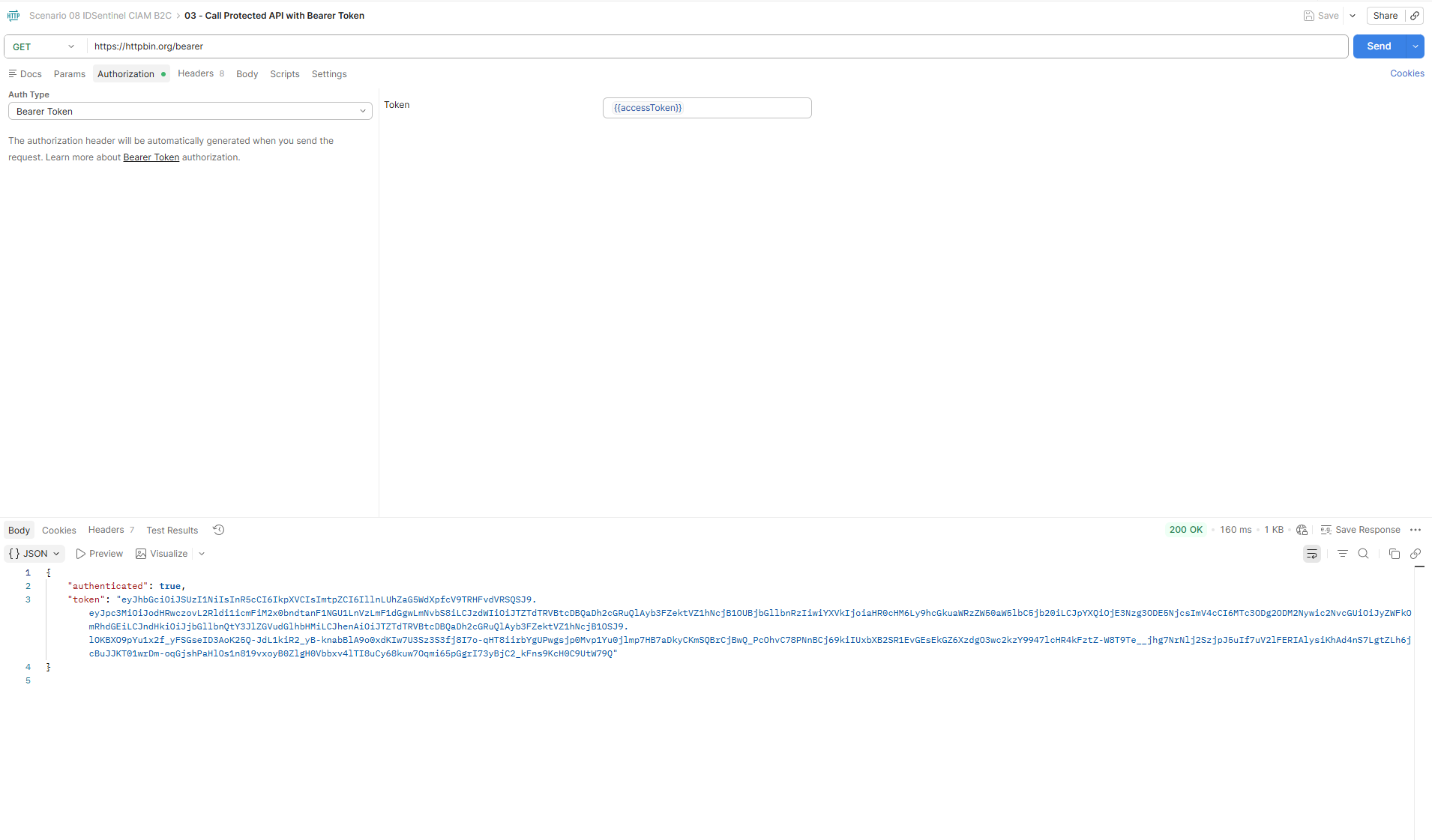

// 14-api-call-bearer-token expand

Protected API — authenticated: true with Bearer token, 401 without

05

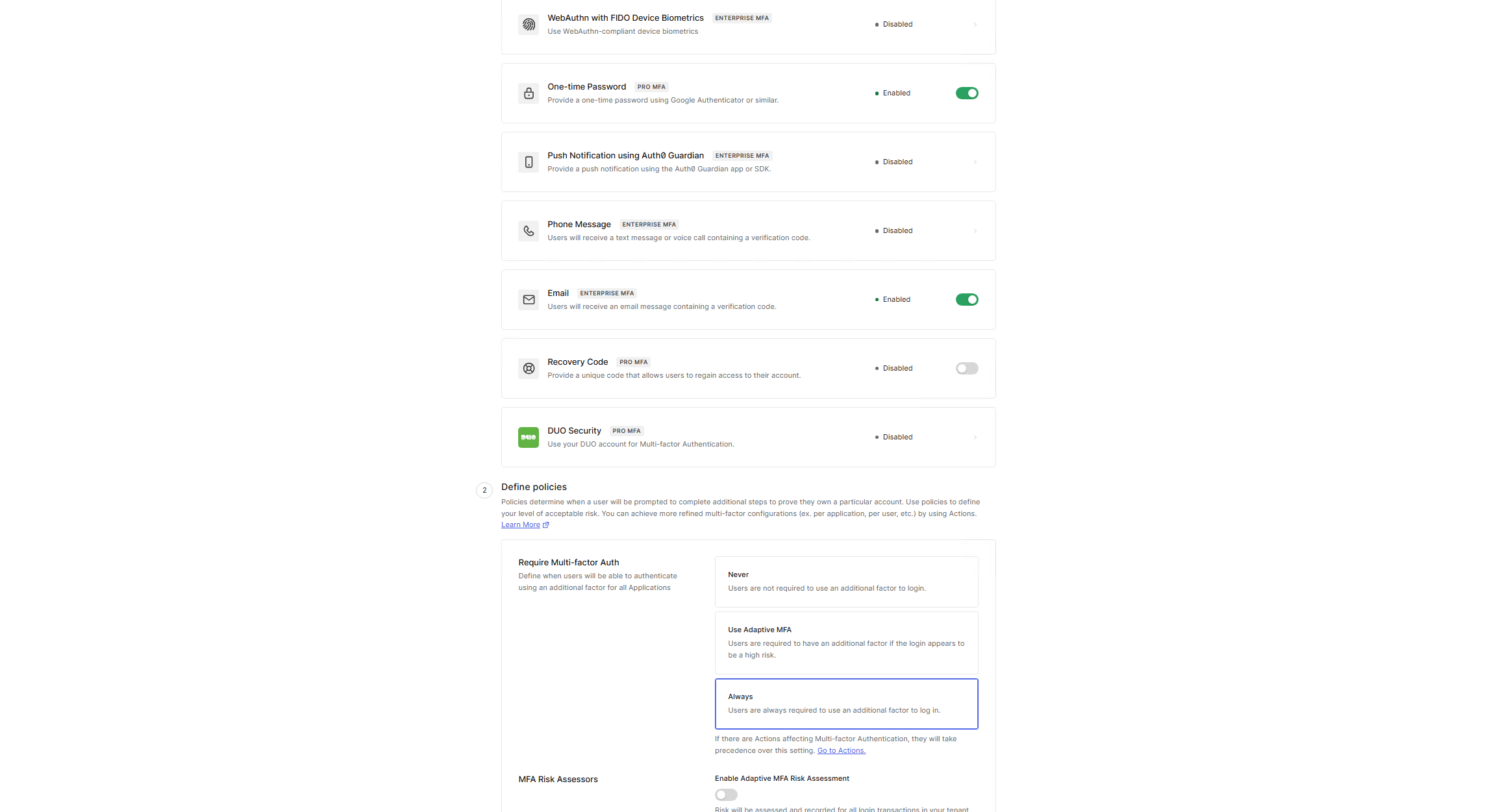

Enable Email OTP MFA

Email OTP factor enabled under Security → Multifactor Auth. MFA policy set to Always — all customers prompted for email OTP on every sign-in.

// 15-mfa-email-otp expand
06

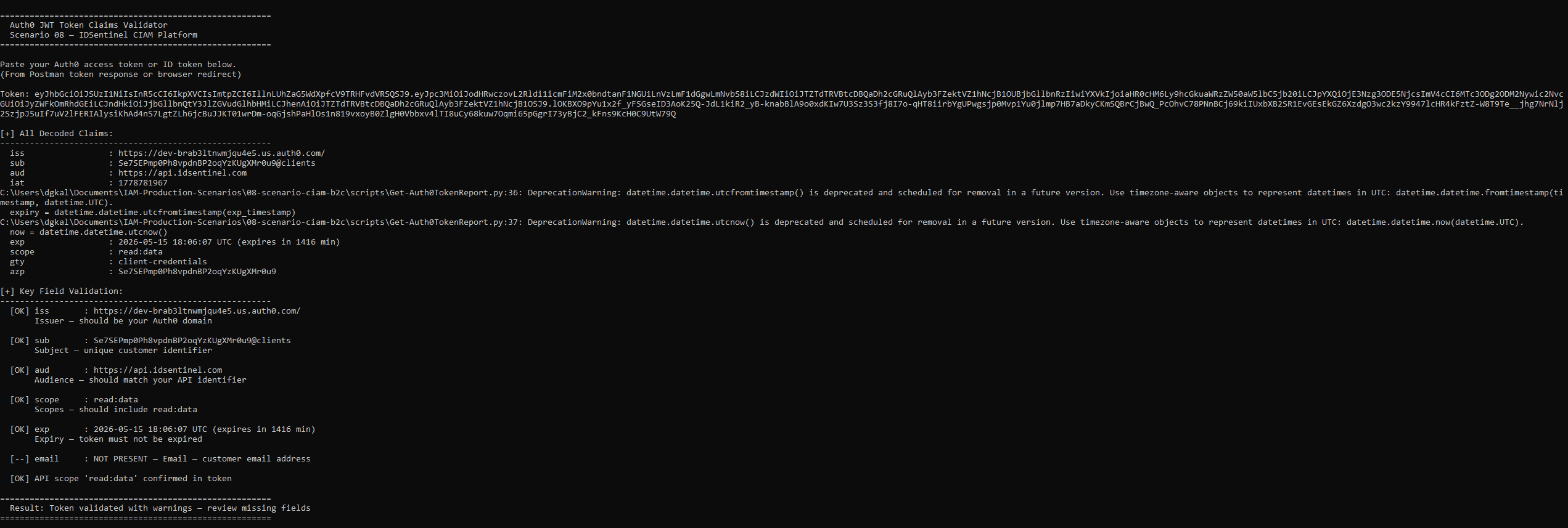

Python Token Validation Script

Get-Auth0TokenReport.py executed against the issued access token. Script decodes JWT payload without signature verification and outputs all claims with field-level validation status — producing an audit-ready token inspection report.

// 16-python-token-validation expand

Outcome

Auth0 tenant fully isolated from corporate Entra ID — zero cross-tenant identity exposure

Universal Login with custom IDSentinel branding — consistent customer-facing experience

Google social federation validated — google-oauth2 linked identity confirmed in user store

OAuth2 client credentials flow validated — scoped JWT issued with correct audience and scope claims

401 Unauthorized confirmed on unauthenticated API requests — Bearer enforcement active

Email OTP MFA enforced on all customer sign-ins via Always policy

Platform Summary

Component	Configuration	Status
Auth0 Tenant	Isolated external CIAM directory	✅ Provisioned
Web App Registration	Callback URLs, origins configured	✅ Configured
API Registration	Audience + `read:data` scope defined	✅ Configured
Universal Login	New experience, custom branding applied	✅ Active
Google Federation	OIDC, `google-oauth2` linked identity confirmed	✅ Active
OAuth2 Token Flow	Client credentials, scoped access token	✅ Validated
API Protection	Bearer token enforcement, 401 on unauth	✅ Enforced
MFA	Email OTP, Always policy	✅ Active

CIAM vs. Workforce IAM

Dimension	Workforce IAM (01–07)	CIAM (08)
Identity population	Employees and contractors	External customers
Directory	Corporate Entra ID tenant	Dedicated Auth0 tenant
Registration	IT-provisioned accounts	Self-service sign-up
Authentication	CA policies, PIM, MFA enforced	Universal Login, social login, OTP
Scale model	~1,000 employees	Designed for millions of customers
UX priority	Security-first	Frictionless customer experience

Files

scripts/Get-Auth0TokenReport.py Python script — JWT decode and claims validation report
postman/CIAM-Auth0.postman_collection.json Postman collection — token request and API call
diagrams/ciam-auth0-architecture.png CIAM platform architecture diagram
screenshots/ Evidence of implementation across all four workstreams
